Yamaha AVENTURA XT1200Z SuperTenere 2010

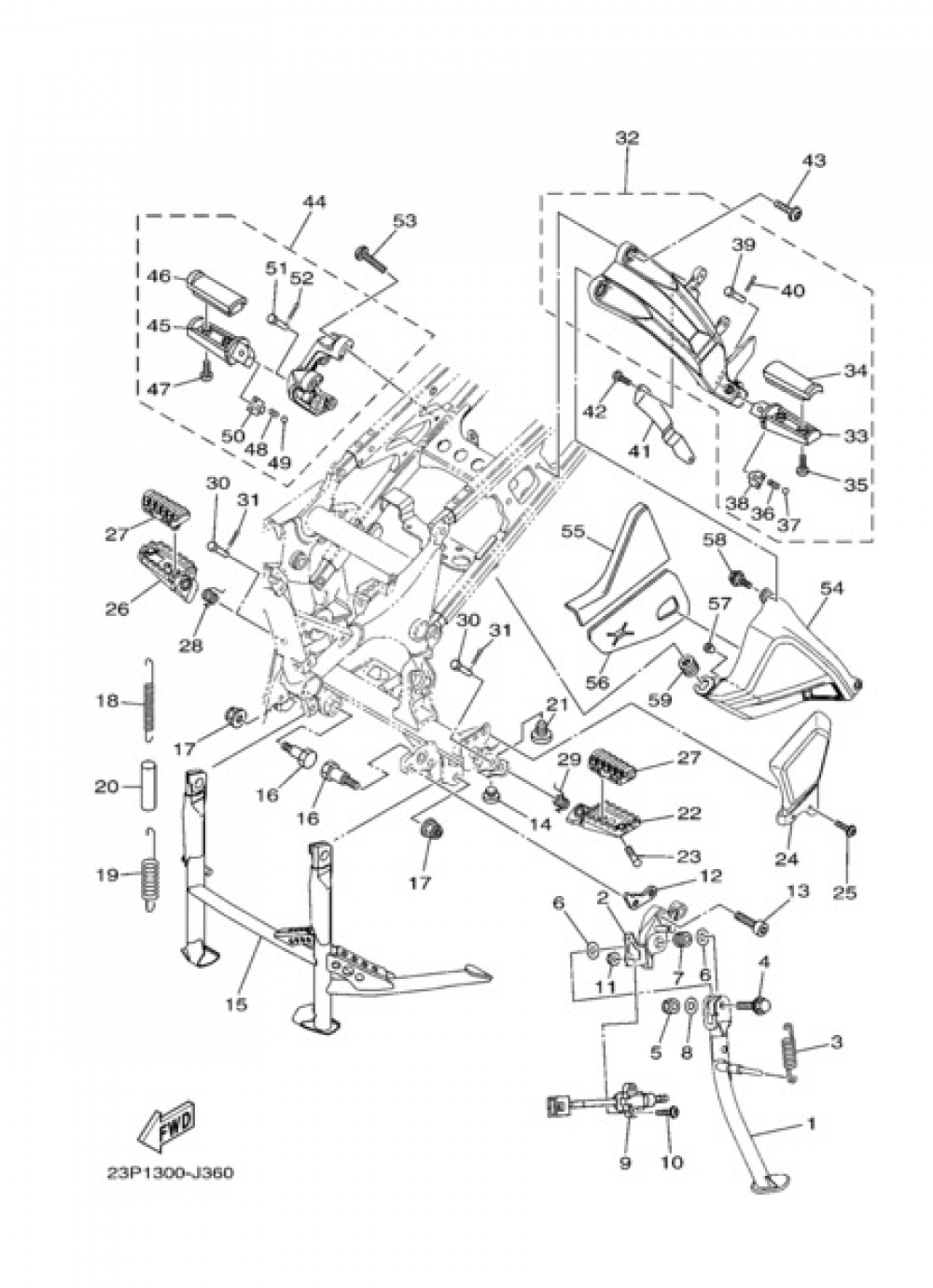

Add model to garageSTAND & FOOTREST Yamaha XT1200Z SuperTenere 2010
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 28 |
SPRING, TORSION
905082005100
|
2,00 € | 1 | Add |
| 29 |
SPRING, TORSION
905082004100
|
2,00 € | 1 | Add |
| 30 |
PIN, CLEVIS
917020804000
|
7,52 € | 1 | Add |
| 31 |
PIN, COTTER
914902502000
|
1,44 € | 5 | Add |
| 32 |
REAR FOOTREST ASSY 1
23P274300000
|
94,13 € | 1 | Add |
| 33 |
FOOTREST, REAR 1
5RT274310000
|
58,57 € | 1 | Add |
| 34 |
COVER, FOOTREST
4D9274130000
|
8,12 € | 1 | Add |
| 35 |
SCREW, PAN HEAD
985070501400
|
0,60 € | 10 | Add |
| 36 |
SPRING, COMPRESSION (22N)
905011274300
|
5,07 € | 5 | Add |
| 37 |
BALL
935010401100
|
0,39 € | 5 | Add |
| 38 |
WASHER, SPECIAL
5VX274370000
|
7,26 € | 1 | Add |
| 39 |
PIN, CLEVIS
917020804000
|
7,52 € | 1 | Add |
| 40 |
PIN, COTTER
914902502000
|
1,44 € | 5 | Add |
| 41 |
BRACKET, FOOTREST 1
23P274120000
|
14,99 € | 1 | Add |
| 42 |
BOLT, BUTTON HEAD
920120500800
|
0,71 € | 1 | Add |
| 43 |
BOLT
90109085G600
|
1,70 € | 1 | Add |
| 44 |
REAR FOOTREST ASSY 2
23P274400000
|
94,13 € | 1 | Add |
| 45 |
FOOTREST, REAR 2
5RT274410000
|
58,57 € | 1 | Add |
| 46 |
COVER, FOOTREST
4D9274130000
|
8,12 € | 1 | Add |
| 47 |
SCREW, PAN HEAD
985070501400
|
0,60 € | 10 | Add |
| 48 |
SPRING, COMPRESSION (22N)
905011274300
|
5,07 € | 5 | Add |
| 49 |
BALL
935010401100
|
0,39 € | 5 | Add |
| 50 |
WASHER, SPECIAL
5VX274370000
|
7,26 € | 1 | Add |
| 51 |
PIN, CLEVIS
917020804000
|
7,52 € | 1 | Add |
| 52 |
PIN, COTTER
914902502000
|
1,44 € | 5 | Add |
| 53 |
BOLT
90109085G600
|
1,70 € | 1 | Add |
| 54 |
PROTECTOR
23P274910000
|
28,62 € | 1 | Add |
