Yamaha AVENTURA XT1200Z SuperTenere 2010

Add model to garage

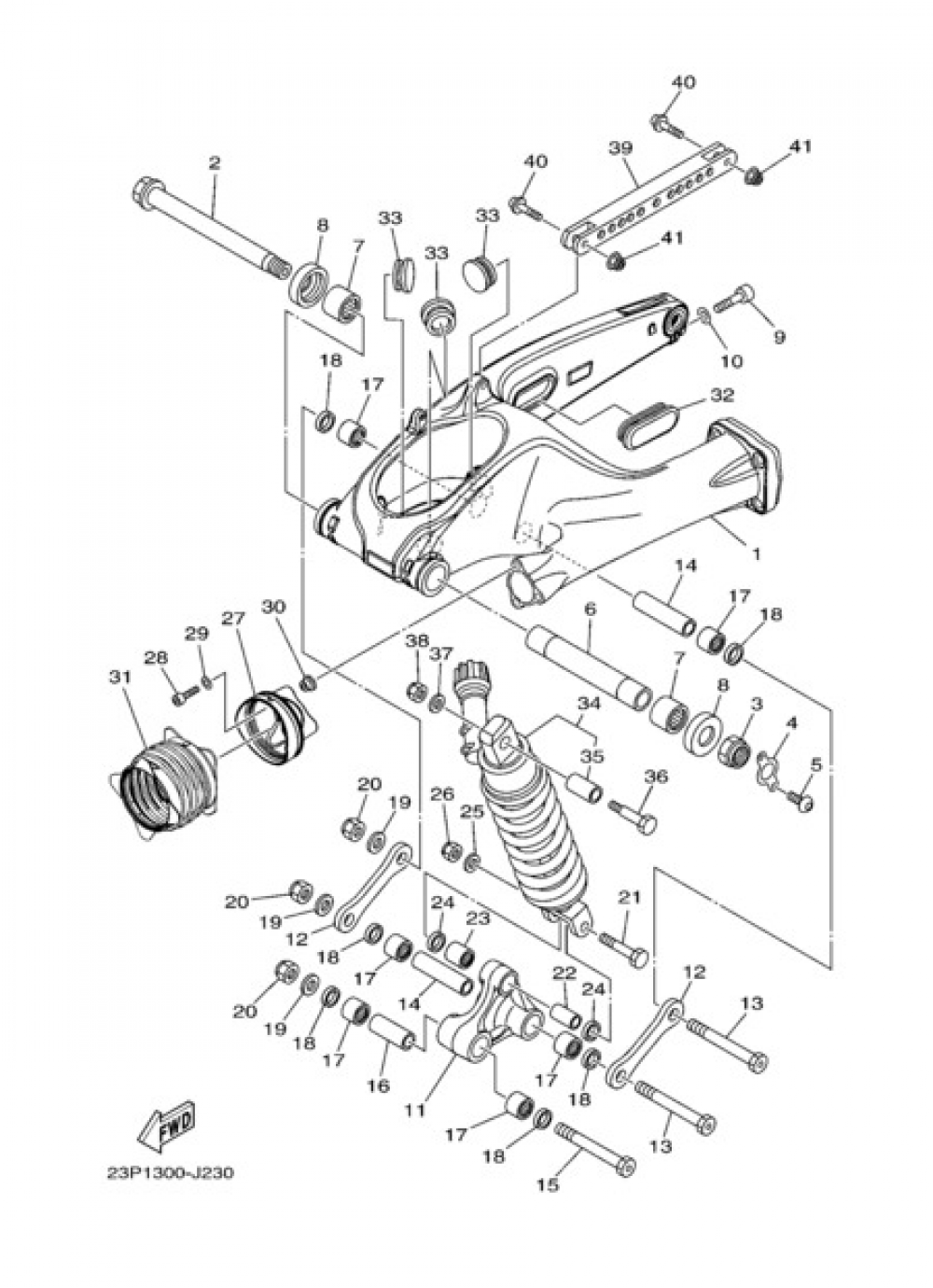

REAR ARM & SUSPENSION Yamaha XT1200Z SuperTenere 2010

Pos. Ref./Description Price Qty.
1 REAR ARM COMP.
23P221100000
2.519,58 € 1 Add
2 SHAFT, PIVOT
23P221410000
104,99 € 1 Add
3 NUT, SELF-LOCKING
901852200900
13,82 € 1 Add
4 BRACKET
23P221630000
4,21 € 1 Add
5 BOLT, BUTTON HEAD
920120500800
0,71 € 1 Add
6 BUSH
23P221840000
75,62 € 1 Add
7 BEARING
93317330A000
26,88 € 1 Add
8 COVER, THRUST 1
23P221280000
21,41 € 1 Add
9 BOLT
913121004000
3,89 € 1 Add
10 WASHER, PLATE
929901060000 929021060000
1,88 € 5 Add
11 ARM, RELAY
23P2217A0000
173,65 € 1 Add
12 ARM 1
23P2217M0000
16,63 € 1 Add
13 BOLT
901091400800
63,79 € 1 Add
14 COLLAR
903871401400
26,60 € 1 Add
15 BOLT
901091400900
81,11 € 1 Add
16 COLLAR
903871401500
19,35 € 1 Add
17 BEARING, CYLINDRICAL(3MH)
933153205700
49,32 € 1 Add
18 OIL SEAL
931092007600
7,67 € 1 Add
19 WASHER, PLATE
902011402700
3,38 € 1 Add
20 NUT, SELF-LOCKING
901851401000
11,04 € 1 Add
21 BOLT
901011203800
7,01 € 1 Add
22 COLLAR
903871204500
12,06 € 1 Add
23 BEARING, CYLINDRICAL(4PT)
933153175000
47,05 € 1 Add
24 OIL SEAL
931091707100
4,47 € 1 Add
25 WASHER, PLATE
902011204500
1,61 € 1 Add
26 NUT, SELF-LOCKING
901851200800
16,41 € 1 Add
27 COVER, DUST
23P2217H0000
11,04 € 1 Add
