Yamaha CUSTOM XVS650A 2006

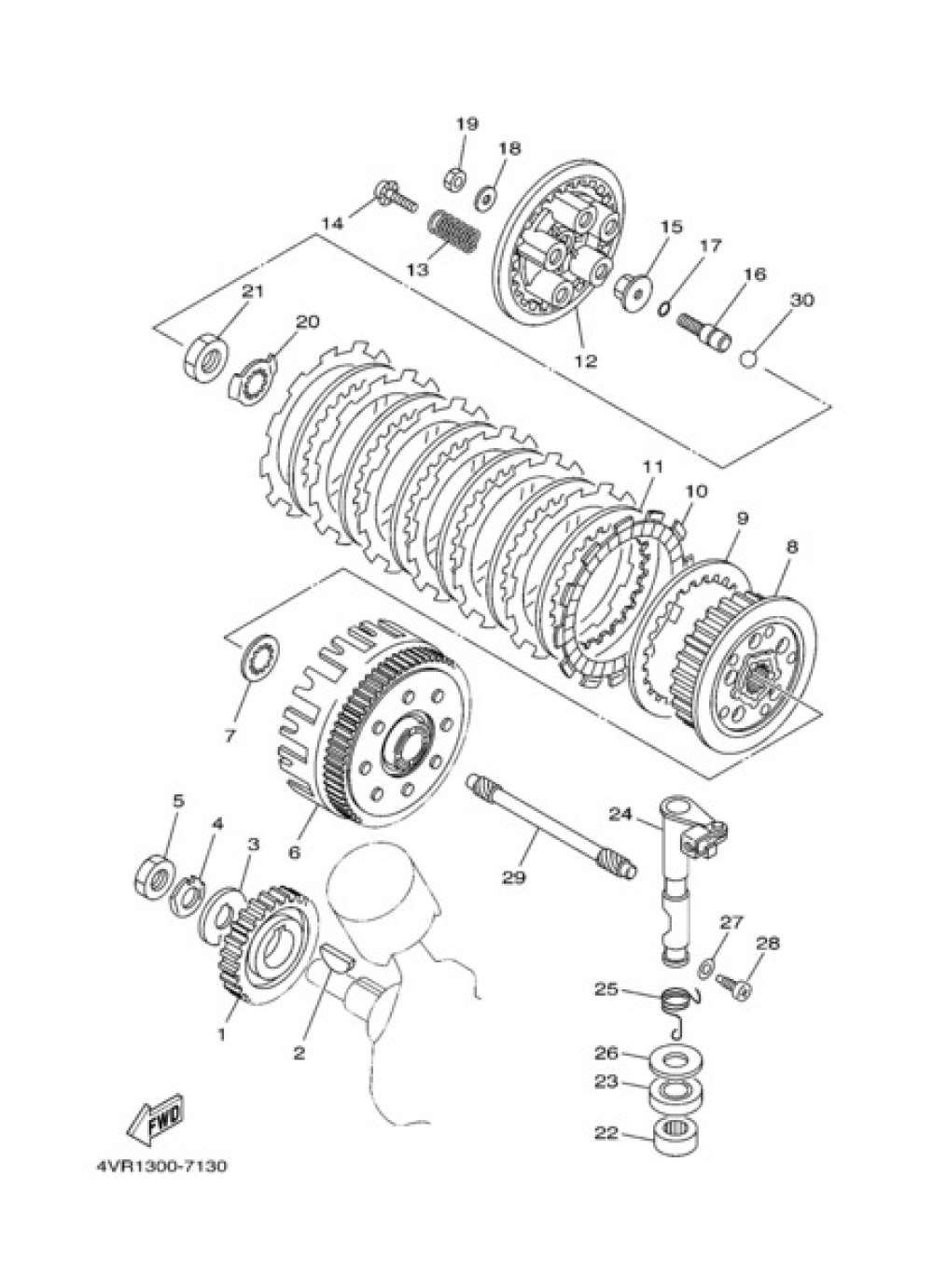

Add model to garageCLUTCH Yamaha XVS650A 2006
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
GEAR, PRIMARY DRIVE
4VR161110000
|
102,83 € | 1 | Add |
| 2 |
KEY, WOODRUFF (22U)
902800703600
|
3,49 € | 1 | Add |
| 3 |
WASHER, CLAW (11H)
902141602600
|
9,88 € | 1 | Add |
| 4 |
WASHER, LOCK (30X)
902151622200
|
5,16 € | 1 | Add |
| 5 |
NUT(24V)
901701634300
|
8,87 € | 1 | Add |
| 6 |
PRIMARY DRIVEN GEAR COMP.
5BN161500000
|
829,43 € | 1 | Add |
| 7 |
PLATE, THRUST 1
22U161540000
|
10,76 € | 1 | Add |
| 8 |
BOSS, CLUTCH
4VR163710000
|
397,90 € | 1 | Add |
| 9 |
PLACA DE EMBRAGUE
4X7163241000
|
19,11 € | 1 | Add |
| 10 |
PLATE, FRICTION
22U163210000
|
15,59 € | 1 | Add |
| 11 |
DISCO, DE EMBRAGUE
4X7163251000
|
13,70 € | 1 | Add |
| 12 |
PLATE, PRESSURE 1
22U163510000
|
114,37 € | 1 | Add |
| 13 |
SPRING, COMPRESSION (22U)
905012373800
|
9,62 € | 1 | Add |
| 14 |
SCREW, WITH WASHER (1W4)
901590601600
|
4,29 € | 1 | Add |
| 15 |
PLATE, PUSH
1W1163580100
|
13,44 € | 1 | Add |
| 16 |
ROD, PUSH 1
4VR163560000
|
21,64 € | 1 | Add |
| 17 |
O-RING (5Y1)
932100952500
|
3,56 € | 1 | Add |
| 18 |
WASHER(6TA)
929070620000
|
0,62 € | 1 | Add |
| 19 |
NUT(6TA)
953170660000
|
0,62 € | 1 | Add |
| 20 |
WASHER, LOCK(47X)
902152224400
|
4,92 € | 1 | Add |
| 21 |
NUT (26H)
901702032300
|
12,76 € | 1 | Add |
| 22 |
BRG,CYL-CAL ROLLER 12G KY
933152181300
|
15,93 € | 1 | Add |
| 23 |
OIL SEAL (22U)
931021827800
|
7,15 € | 1 | Add |
| 24 |
PUSH LEVER ASSY
22U163800000
|
97,38 € | 1 | Add |
| 25 |
SPRING, TORSION (22U)
905081657700
|
4,36 € | 1 | Add |
| 26 |
WASHER PLATE 168217580000
902011826200
|
2,57 € | 1 | Add |
| 27 |
WASHER, PLATE 3411117500
902010808700
|
3,09 € | 1 | Add |
