Yamaha CUSTOM XVS650A 2006

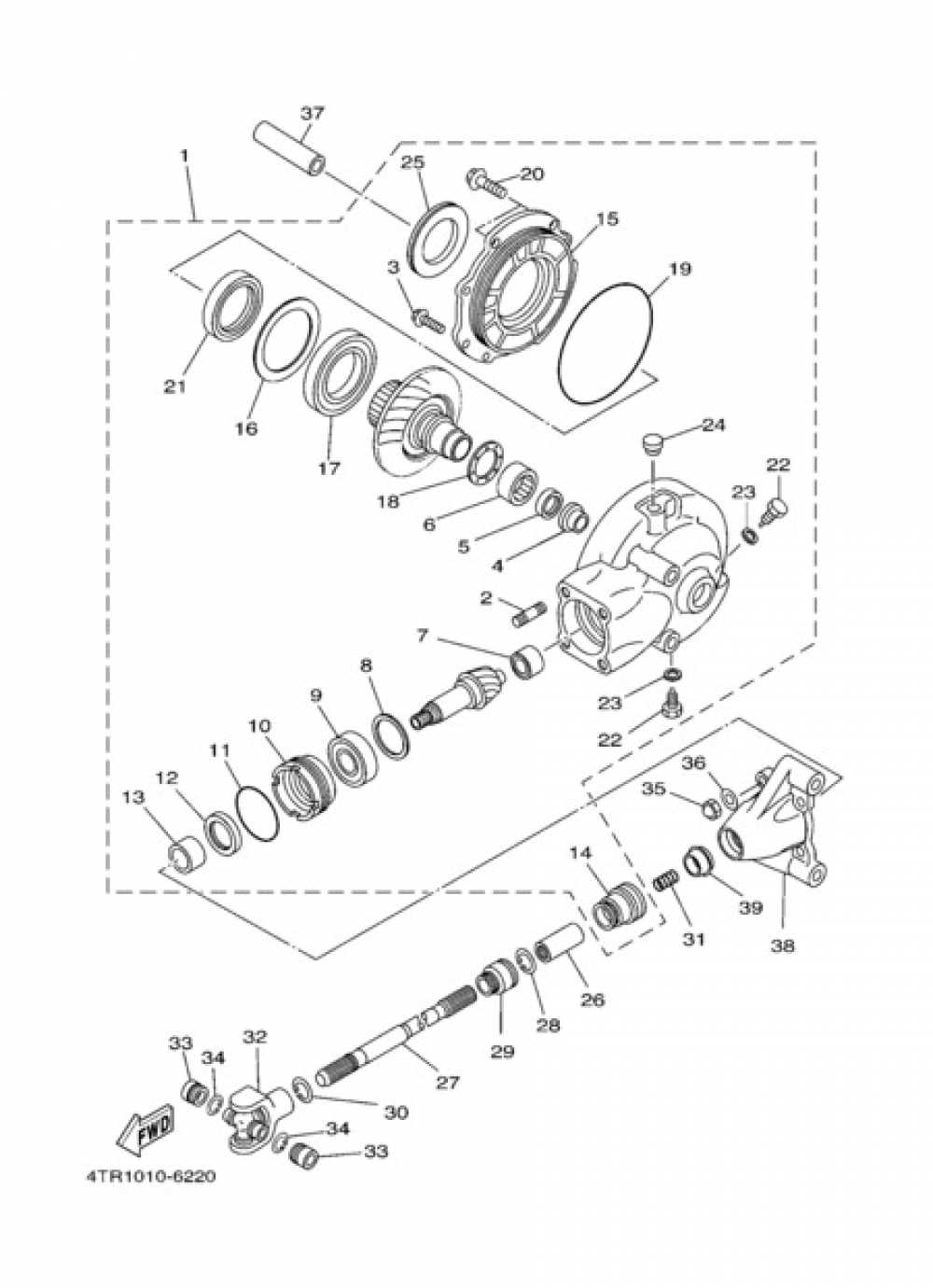

Add model to garageDRIVE SHAFT Yamaha XVS650A 2006
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 0 |
SHIM, THRUST (0.40T)
1J717537Y040
|
4,65 € | 1 | Add |
| 0 |
SHIM, THRUST (0.50T)
1J717537Y050
|
4,65 € | 1 | Add |
| 0 |
SHIM, RING GEAR
22U461170040
|
4,65 € | 1 | Add |
| 0 |
SHIM, RING GEAR
22U461170040
|
4,65 € | 1 | Add |
| 0 |
WASHER, THRUST
22U461180012
|
9,76 € | 1 | Add |
| 0 |
WASHER, THRUST
22U461180012
|
9,76 € | 1 | Add |
| 0 |
WASHER, THRUST
22U461180012
|
9,76 € | 1 | Add |
| 0 |
WASHER, THRUST
22U461180012
|
9,76 € | 1 | Add |
| 1 |
SHAFT DRIVE SUB ASSY
5FBW46170000
|
1.799,12 € | 1 | Add |
| 2 |
BOLT, STUD (5E5)
901161036100
|
3,82 € | 1 | Add |
| 3 |
BOLT, HEXAGON
970170802500
|
1,60 € | 1 | Add |
| 4 |
COLLAR, GUIDE
22U461530000
|
28,70 € | 1 | Add |
| 5 |
OIL SEAL (30X42X7-1J7)
931013008400
|
9,69 € | 1 | Add |
| 6 |
BRG,CYL-CAL ROLLER 80G KY
933114372900
|
114,65 € | 1 | Add |
| 7 |
BEARING ASSY
2H7461020000
|
63,92 € | 1 | Add |
| 8 |
SHIM, THRUST (0.30T)
1J717537Y030
|
4,65 € | 1 | Add |
| 9 |
BRG,R-B 6305RB1 62MM 245G KY
933063053300
|
203,95 € | 1 | Add |
| 10 |
RETAINER, BEARING
4H7461250000
|
60,74 € | 1 | Add |
| 11 |
O-RING (4H7)
932106042600
|
8,08 € | 1 | Add |
| 12 |
OIL SEAL (4H7)
931013809800
|
10,24 € | 1 | Add |
| 13 |
COLLAR (22U)
90387256G900
|
Obsolete | 1 | Not available |
| 14 |
SEAL 1
22U461360000
|
Obsolete | 1 | Not available |
| 15 |
HOUSING, BEARING
22U461520000
|
121,82 € | 1 | Add |
| 16 |
SHIM, RING GEAR
22U461170025
|
4,65 € | 1 | Add |
| 17 |
BEARING, CYLINDRICAL (22U)
933160130100
|
155,24 € | 1 | Add |
| 18 |
WASHER, THRUST
22U461180012
|
9,76 € | 1 | Add |
| 19 |
O-RING (22U)
932113956900
|
12,92 € | 1 | Add |
0
