Yamaha CUSTOM XVS650A 2006

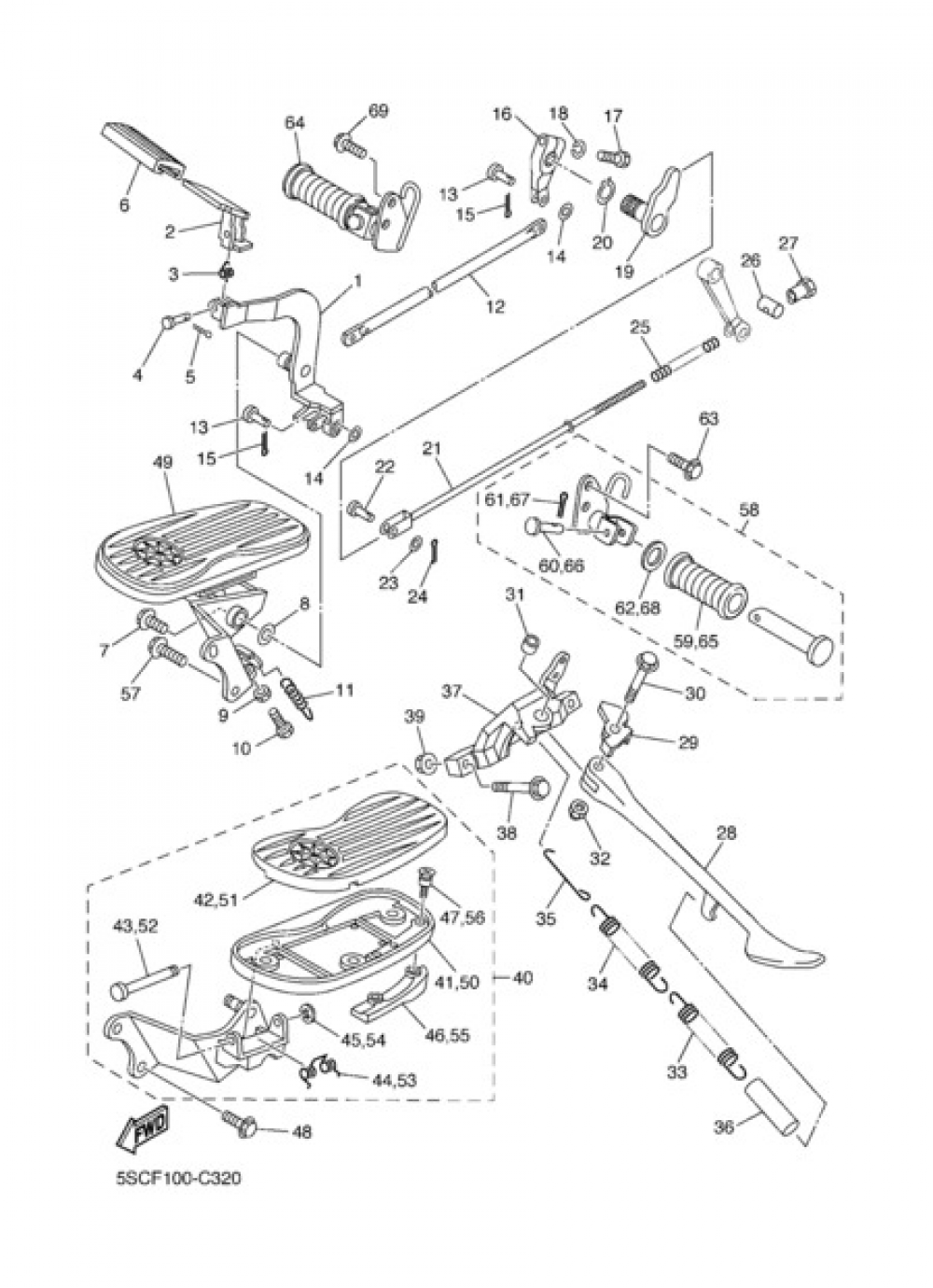

Add model to garageSTAND & FOOTREST Yamaha XVS650A 2006
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
PEDAL, BRAKE
5BN272110100
|
85,02 € | 1 | Add |
| 2 |
PEDAL, BRAKE
4NK272420000
|
50,26 € | 1 | Add |
| 3 |
SPRING, TORSION
905081802300
|
1,77 € | 1 | Add |
| 4 |
PIN, COTTER (1W2)
917010602200
|
1,60 € | 1 | Add |
| 5 |
PIN, COTTER (648)
914902001500
|
2,22 € | 1 | Add |
| 6 |
CAP
4NK272850000
|
37,82 € | 1 | Add |
| 7 |
BOLT, HEXAGON SOCKET HEAD
901100611900
|
11,33 € | 1 | Add |
| 8 |
WASHER, WAVE(6T4)
902061408600
|
6,91 € | 1 | Add |
| 9 |
NUT(JN5)
953170670000
|
0,62 € | 1 | Add |
| 10 |
BOLT, HEXAGON
970170602500
|
1,33 € | 1 | Add |
| 11 |
SPRING, TENSION(47X)
905062036900
|
5,97 € | 1 | Add |
| 12 |
ROD 1
4TR272470000
|
45,60 € | 1 | Add |
| 13 |
PIN, CLEVIS (32H)
902400610800
|
4,23 € | 1 | Add |
| 14 |
WASHER, PLATE(3SX)
90201062P700
|
2,68 € | 1 | Add |
| 15 |
PIN, COTTER (648)
914902001500
|
2,22 € | 1 | Add |
| 16 |
BOSS, BRAKE PEDAL
4TR272430000
|
78,73 € | 1 | Add |
| 17 |
BOLT (1J7)
901090646800
|
1,66 € | 1 | Add |
| 18 |
WASHER, SPRING
929070610000
|
0,62 € | 5 | Add |
| 19 |
SHAFT, BRAKE PEDAL
4TR272120000
|
67,92 € | 1 | Add |
| 20 |
CIRCLIP(1EY)
990091940000
|
4,29 € | 1 | Add |
| 21 |
ROD, BRAKE
4TR272310000
|
39,83 € | 1 | Add |
| 22 |
PIN, CLEVIS (32H)
902400610800
|
4,23 € | 1 | Add |
| 23 |
WASHER, PLATE(3SX)
90201062P700
|
2,68 € | 1 | Add |
| 24 |
PIN, COTTER (648)
914902001500
|
2,22 € | 1 | Add |
| 25 |
SPRING, (180-27236-00)
905011024500
|
3,09 € | 5 | Add |
| 26 |
PIN 1562723700
902491200800
|
4,29 € | 5 | Add |
| 27 |
NUT (25K)
901790641100
|
1,55 € | 5 | Add |
