Yamaha MAXI SCOOTERS T-Max 530 ABS 2013

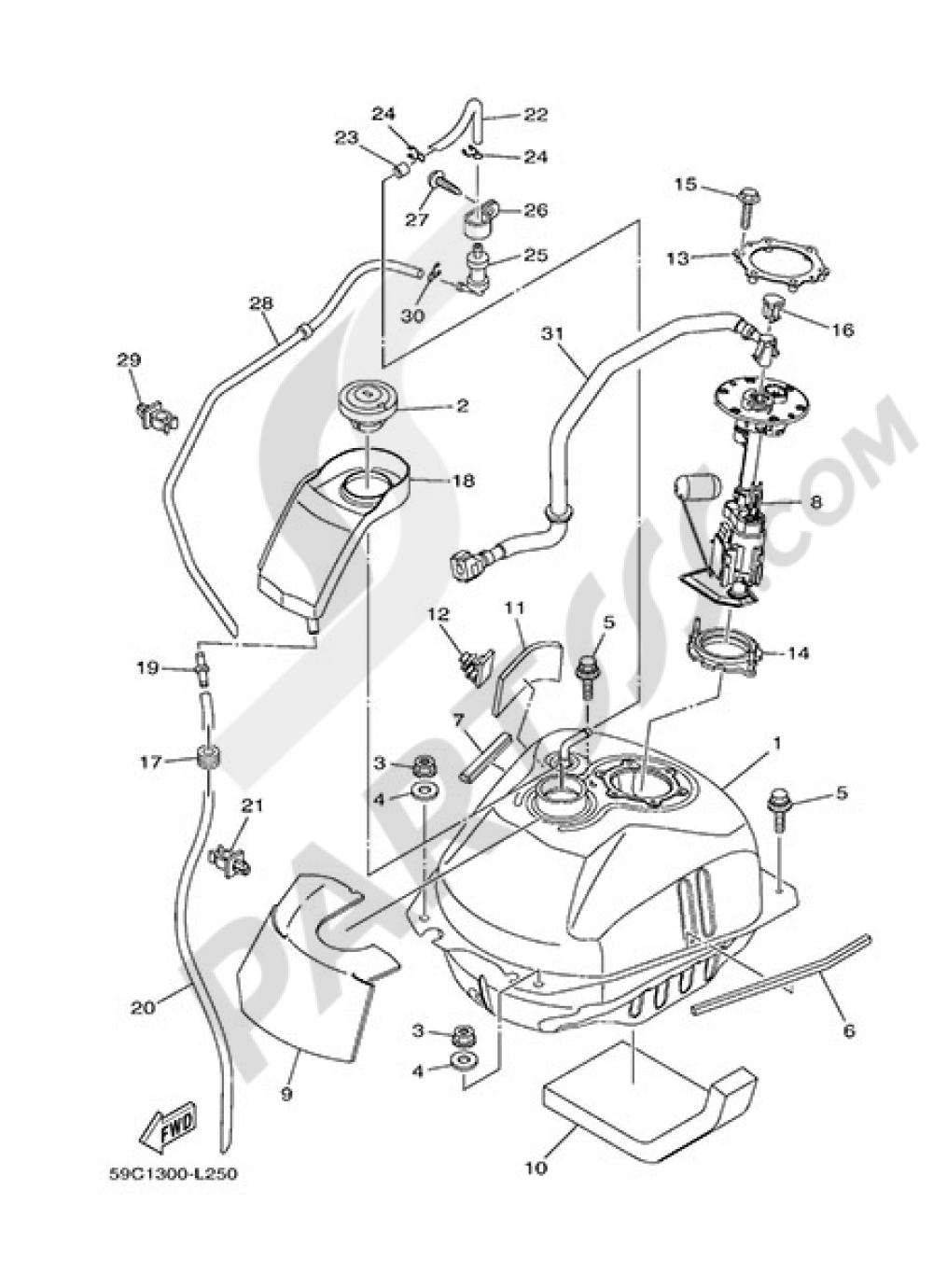

Add model to garageFUEL TANK Yamaha T-Max 530 ABS 2013
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FUEL TANK COMP.
59C241100000
|
237,88 € | 1 | Add |
| 2 |
CAP ASSY
54K246021000
|
158,41 € | 1 | Add |
| 3 |
NUT, FLANGE(7NB)
957800650000
|
1,77 € | 1 | Add |
| 4 |
WASHER, PLATE
902010607800
|
0,52 € | 1 | Add |
| 5 |
SCREW, WITH WASHER
901590605100
|
1,66 € | 1 | Add |
| 6 |
DAMPER, LOCATING 1
4B5241810000
|
2,80 € | 1 | Add |
| 7 |
MOLD, FUEL TANK
1HX241880100
|
11,15 € | 1 | Add |
| 8 |
MAINTENANCE PART
59C139070100
|
724,52 € | 1 | Add |
| 9 |
DAMPER, LOCATING 2
4B5241820000
|
32,83 € | 1 | Add |
| 10 |
DAMPER, LOCATING 4
59C241840000
|
38,67 € | 1 | Add |
| 11 |
DAMPER, PLATE
905200400900
|
1,33 € | 1 | Add |
| 12 |
CLAMP(3YL)
904642516000
|
7,51 € | 1 | Add |
| 13 |
BRACKET, FUEL PUMP
59C244910000
|
68,43 € | 1 | Add |
| 14 |
SEAL
5CA2414G0100
|
17,22 € | 1 | Add |
| 15 |
BOLT, WITH WASHER
975020552000
|
0,69 € | 1 | Add |
| 16 |
CLAMP 1
5VU241350000
|
16,78 € | 1 | Add |
| 17 |
GROMMET (462)
904801301800
|
1,60 € | 1 | Add |
| 18 |
COVER, FILLER
4B52414A0000
|
33,10 € | 1 | Add |
| 19 |
BOSS, CONNECTOR
4JP217530000
|
4,36 € | 1 | Add |
| 20 |
PIPE, OVERFLOW
59C243180000
|
17,22 € | 1 | Add |
| 21 |
CLAMP
904640900800
|
3,09 € | 1 | Add |
| 22 |
PIPE 3
4B5243130000
|
12,64 € | 1 | Add |
| 23 |
PROTECTOR, FUEL TANK
4B5241410000
|
0,69 € | 1 | Add |
| 24 |
CLIP
90467090A200
|
0,74 € | 1 | Add |
| 25 |
ROLL OVER VALVE ASSY
5RB241800000
|
142,07 € | 1 | Add |
| 26 |
CLAMP 1
4B5241350000
|
12,57 € | 1 | Add |
| 27 |
SCREW, TRUSS TAP.
977075001400
|
0,62 € | 1 | Add |
