Yamaha MAXI SCOOTERS T-Max 530 ABS 2013

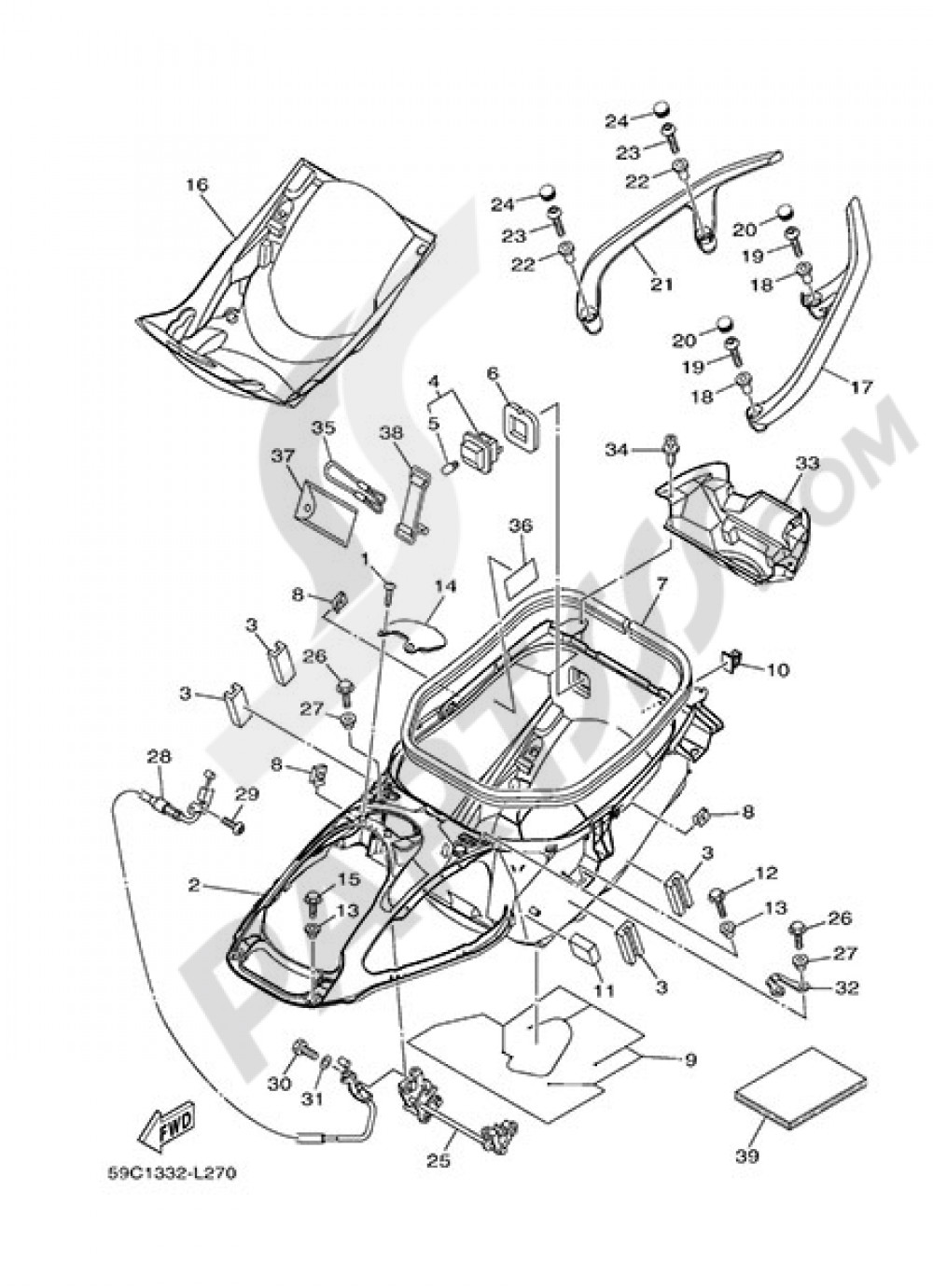

Add model to garageSEAT 2 Yamaha T-Max 530 ABS 2013
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
SCREW, TAPPING(4TV)
901670507700
|
0,60 € | 5 | Add |
| 2 |
CAJA 1
59C2473R0100
|
335,39 € | 1 | Add |
| 3 |
DAMPER, SEAT
4B5247370000
|
11,61 € | 1 | Add |
| 4 |
LIGHT, ACCESSORY
4HC847700000
|
42,96 € | 1 | Add |
| 5 |
BULB (12V-2W)
4HC843470000
|
6,81 € | 1 | Add |
| 6 |
SEAL, BOX 2
5GJ2839M0000
|
2,33 € | 1 | Add |
| 7 |
SEAL 3
59C2173M0000
|
55,50 € | 1 | Add |
| 8 |
NUT, SPRING(1YT)
901830504200
|
0,60 € | 5 | Add |
| 9 |
DAMPER 1
59C282170000
|
29,13 € | 1 | Add |
| 10 |
CLAMP(4FM)
904641318500
|
4,16 € | 1 | Add |
| 11 |
DAMPER 2
4C8284160000
|
1,44 € | 1 | Add |
| 12 |
BOLT, FLANGE
958170602000
|
1,22 € | 1 | Add |
| 13 |
COLLAR
903870617000
|
3,25 € | 1 | Add |
| 14 |
CAP
4B52482H0000
|
12,60 € | 1 | Add |
| 15 |
BOLT, FLANGE
950220601400
|
0,39 € | 1 | Add |
| 16 |
AMORTIGUADOR DE ASIENTO
59C247470100
|
78,06 € | 1 | Add |
| 17 |
FIADOR DE EMPUNADURA
4B52474A02P8
|
257,44 € | 1 | Add |
| 17 |
FIADOR DE EMPUNADURA
4B52474A02PA
|
257,44 € | 1 | Add |
| 17 |
FIADOR DE EMPUNADURA
4B52474A02PB
|
257,44 € | 1 | Add |
| 18 |
COLLAR
903870806800
|
7,59 € | 1 | Add |
| 19 |
BOLT, BUTTON HEAD
920120803500
|
1,70 € | 1 | Add |
| 20 |
PROTECTOR,1
4B52476U0000
|
8,56 € | 1 | Add |
| 21 |
ASSIST,EMPU ADURA 2
4B52474W02PA
|
257,24 € | 1 | Add |
| 21 |
ASSIST,EMPU ADURA 2
4B52474W02P9
|
257,24 € | 1 | Add |
| 21 |
ASSIST,EMPU ADURA 2
4B52474W02P8
|
257,24 € | 1 | Add |
| 22 |
COLLAR
903870806800
|
7,59 € | 1 | Add |
| 23 |
BOLT, BUTTON HEAD
920120803500
|
1,70 € | 1 | Add |
