Yamaha SPORT TOURING FJR1300AS 2011

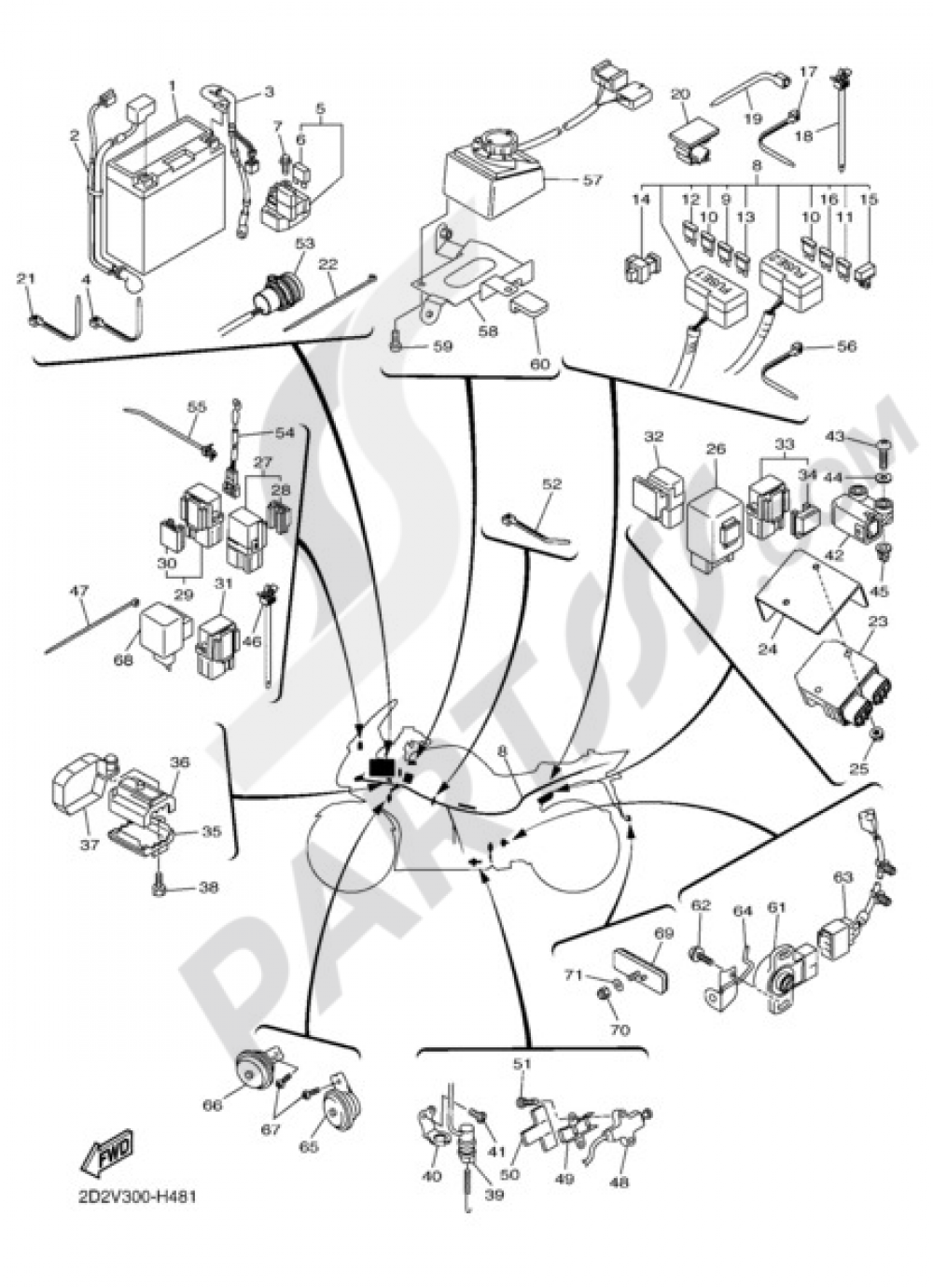

Add model to garageELECTRIC EQUIPMENT 2 Yamaha FJR1300AS 2011
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 28 |
HOLDER,RELAY
5EA819520000
|
6,71 € | 1 | Add |
| 29 |
RELAY ASSY (5EA-02)
5EA819502000
|
99,26 € | 1 | Add |
| 30 |
HOLDER,RELAY
5EA819520000
|
6,71 € | 1 | Add |
| 31 |
RELAY CONJUNTO
5JJ819501100
|
101,09 € | 1 | Add |
| 32 |
RELAY CONJUNTO
5DM819500100
|
56,64 € | 1 | Add |
| 33 |
RELAY ASSY (5EA-02)
5EA819502000
|
99,26 € | 1 | Add |
| 34 |
HOLDER,RELAY
5EA819520000
|
6,71 € | 1 | Add |
| 35 |
HOUSING, CONNECTEUR 1
5VS8258J0000
|
17,52 € | 1 | Add |
| 36 |
HOUSING, CONNECTEUR 2
5VS8259J0000
|
3,09 € | 1 | Add |
| 37 |
BRACKET, LOCK
5VS827290000
|
12,76 € | 1 | Add |
| 38 |
BOLT, HEXAGON
970170601200
|
1,33 € | 1 | Add |
| 39 |
STOP SWITCH ASSY
3P6825300000
|
50,64 € | 1 | Add |
| 40 |
STAY, STOP SWITCH
5JW2144G0000
|
13,85 € | 1 | Add |
| 41 |
SCREW, BIND
989020500800
|
1,55 € | 1 | Add |
| 42 |
INTERRUP.DE PARADA COMPLETO
5PS825760200
|
142,04 € | 1 | Add |
| 43 |
SCREW, TAPPING
977024002500
|
0,41 € | 1 | Add |
| 44 |
WASHER, PLATE
902010403000
|
0,74 € | 1 | Add |
| 45 |
NUT, ADJUSTING
4B4843340000
|
4,74 € | 1 | Add |
| 46 |
CLAMP(2TV)
904641011200
|
5,16 € | 5 | Add |
| 47 |
BAND
1UA825910000
|
2,17 € | 5 | Add |
| 48 |
SWITCH, SIDE STAND
5PX825665100
|
100,33 € | 1 | Add |
| 49 |
PLATE
3P6823880000
|
8,87 € | 1 | Add |
| 50 |
DAMPER
3P6821761000
|
11,28 € | 1 | Add |
| 51 |
SCREW, PAN HEAD(JJ6)
985070501600
|
0,62 € | 1 | Add |
| 52 |
CLAMP
904651009800
|
0,86 € | 1 | Add |
| 53 |
TERMINAL COMP.
3P68254B0000
|
127,70 € | 1 | Add |
| 54 |
THERMISTOR ASSY
5RU857000000
|
58,43 € | 1 | Add |
