Yamaha SPORT TOURING FJR1300AS 2011

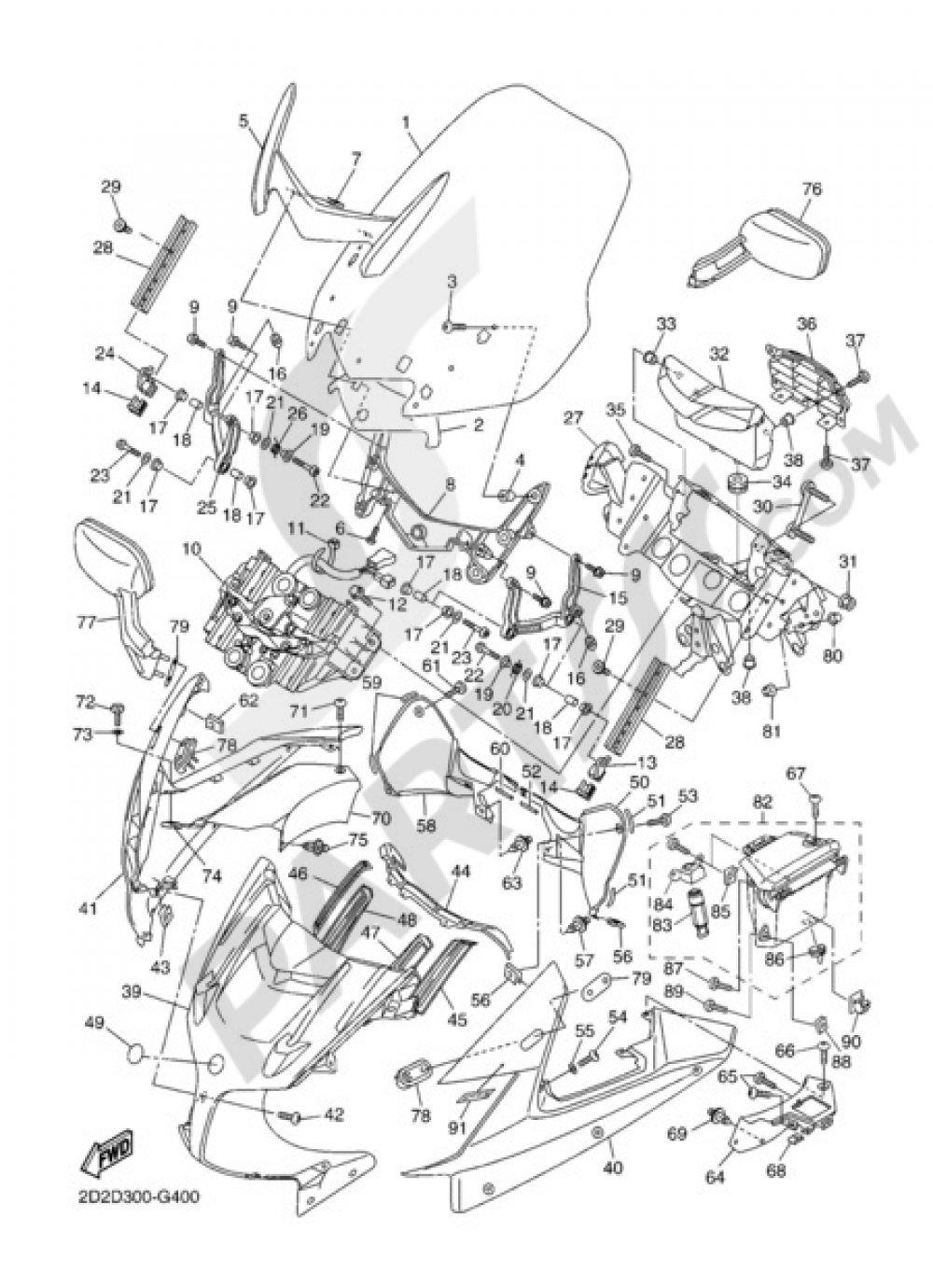

Add model to garageFAIRING 1 Yamaha FJR1300AS 2011
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 77 |
REAR VIEW MIRROR ASSY (RIGHT)
3P62629000P7
|
191,41 € | 1 | Add |
| 77 |
REAR VIEW MIRROR ASSY (RIGHT)
3P62629000P8
|
191,41 € | 1 | Add |
| 78 |
PLATE, MIRROR FITTING 1
5JW262980000
|
15,02 € | 1 | Add |
| 79 |
PLATE, MIRROR FITTING 2
3P6262990000
|
4,55 € | 1 | Add |
| 80 |
COLLAR(4JW)
903870602X00
|
8,84 € | 1 | Add |
| 81 |
NUT, FLANGE(7NB)
957800650000
|
1,82 € | 1 | Add |
| 82 |
BOX SUB ASSY
3P62830N00P7
|
Obsolete | 1 | Not available |
| 82 |
BOX SUB ASSY
3P62830N00P8
|
438,93 € | 1 | Add |
| 83 |
LOCK ASSY
5VS284700000
|
377,86 € | 1 | Add |
| 84 |
BRACKET
5VS283670000
|
9,76 € | 1 | Add |
| 85 |
NUT, SPRING
90183051A000
|
2,07 € | 1 | Add |
| 86 |
GROMMET
3P6281870000
|
6,80 € | 1 | Add |
| 87 |
SCREW, TAPPING
901670508000
|
2,97 € | 5 | Add |
| 88 |
NUT, SPRING
90183050A600
|
2,43 € | 1 | Add |
| 89 |
SCREW(3YF)
901490529900
|
4,83 € | 1 | Add |
| 90 |
CLAMP(4FM)
904641318500
|
4,42 € | 1 | Add |
| 91 |
EMBLEM
2D2283154000
|
23,82 € | 1 | Add |
