Yamaha XJ-SERIES XJ6 Diversion ABS 2010

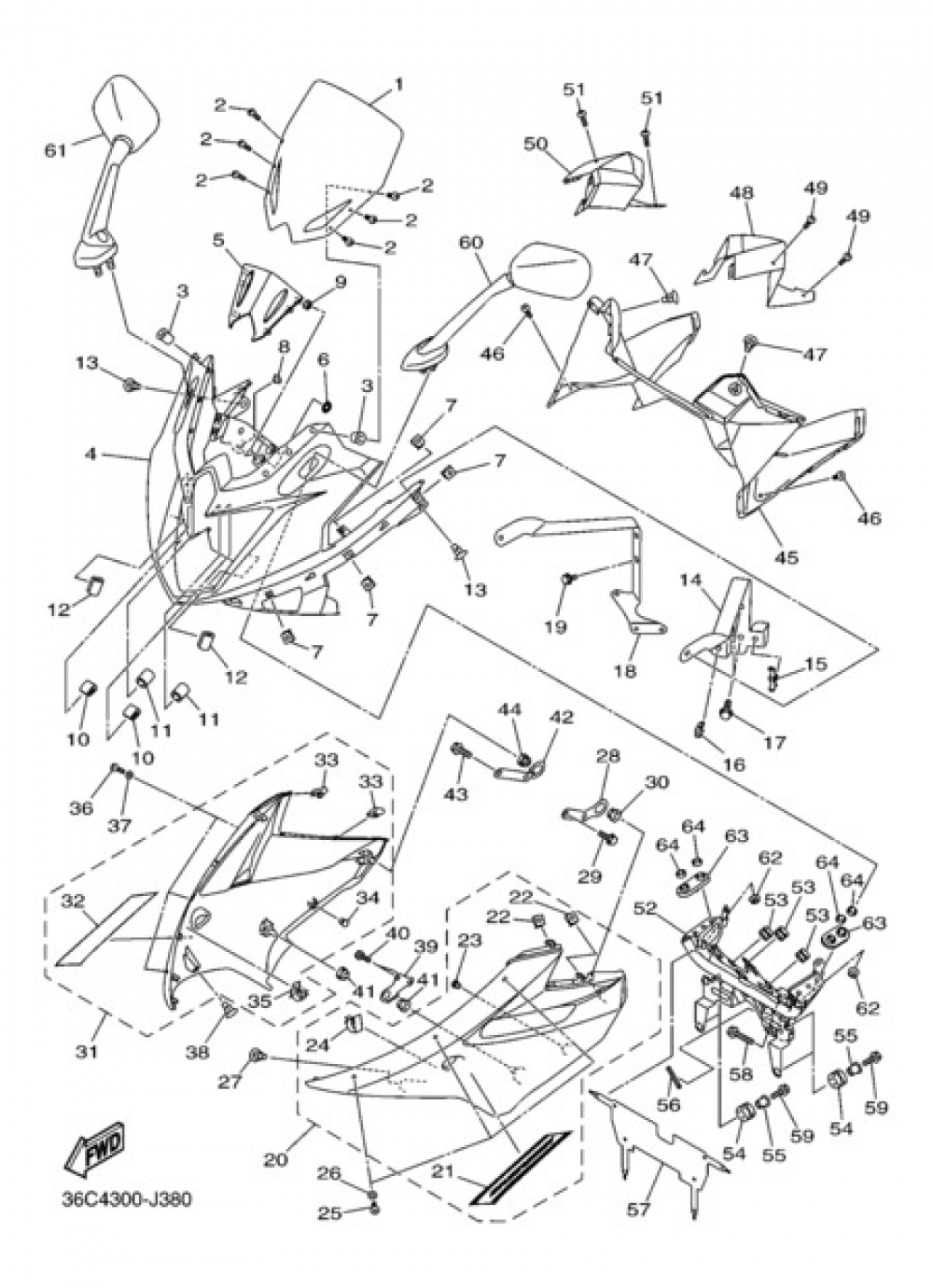

Add model to garageFAIRING Yamaha XJ6 Diversion ABS 2010
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 45 |
PANEL, INNER 1
36C2836K0000
|
115,68 € | 1 | Add |
| 46 |
TORNILLO ALLEN
901110505900
|
3,18 € | 5 | Add |
| 47 |
RIVET
902690600800
|
1,30 € | 1 | Add |
| 48 |
PANEL, INNER 2
36C2836L0000
|
79,43 € | 1 | Add |
| 49 |
TORNILLO ALLEN
901110505900
|
3,18 € | 5 | Add |
| 50 |
PANEL, INNER 3
36C2836M0000
|
79,43 € | 1 | Add |
| 51 |
TORNILLO ALLEN
901110505900
|
3,18 € | 5 | Add |
| 52 |
STAY 1
36C283560100
|
108,49 € | 1 | Add |
| 53 |
DAMPER
3C3835130000
|
4,82 € | 1 | Add |
| 54 |
GROMMET
904801400400
|
5,40 € | 1 | Add |
| 55 |
COLLAR 437216330000
903870739100
|
4,99 € | 1 | Add |
| 56 |
MOLE 4
2S3283480000
|
5,31 € | 1 | Add |
| 57 |
COVER
36C283650000
|
38,13 € | 1 | Add |
| 58 |
BOLT, FLANGE
958170803500
|
1,72 € | 1 | Add |
| 59 |
BOLT, FLANGE
958170602500
|
0,52 € | 1 | Add |
| 60 |
REAR VIEW MIRROR ASSY (LEFT)
36C262800000
|
89,13 € | 1 | Add |
| 61 |
REAR VIEW MIRROR ASSY (RIGHT)
36C262900000
|
89,13 € | 1 | Add |
| 62 |
NUT, U FLANGE
956040620000
|
1,60 € | 1 | Add |
| 63 |
PLATE, MIRROR FITTING 1
5VY262980000
|
4,55 € | 1 | Add |
| 64 |
COLLAR
903870610600
|
1,46 € | 1 | Add |
