Yamaha XJ-SERIES XJ6 Diversion ABS 2010

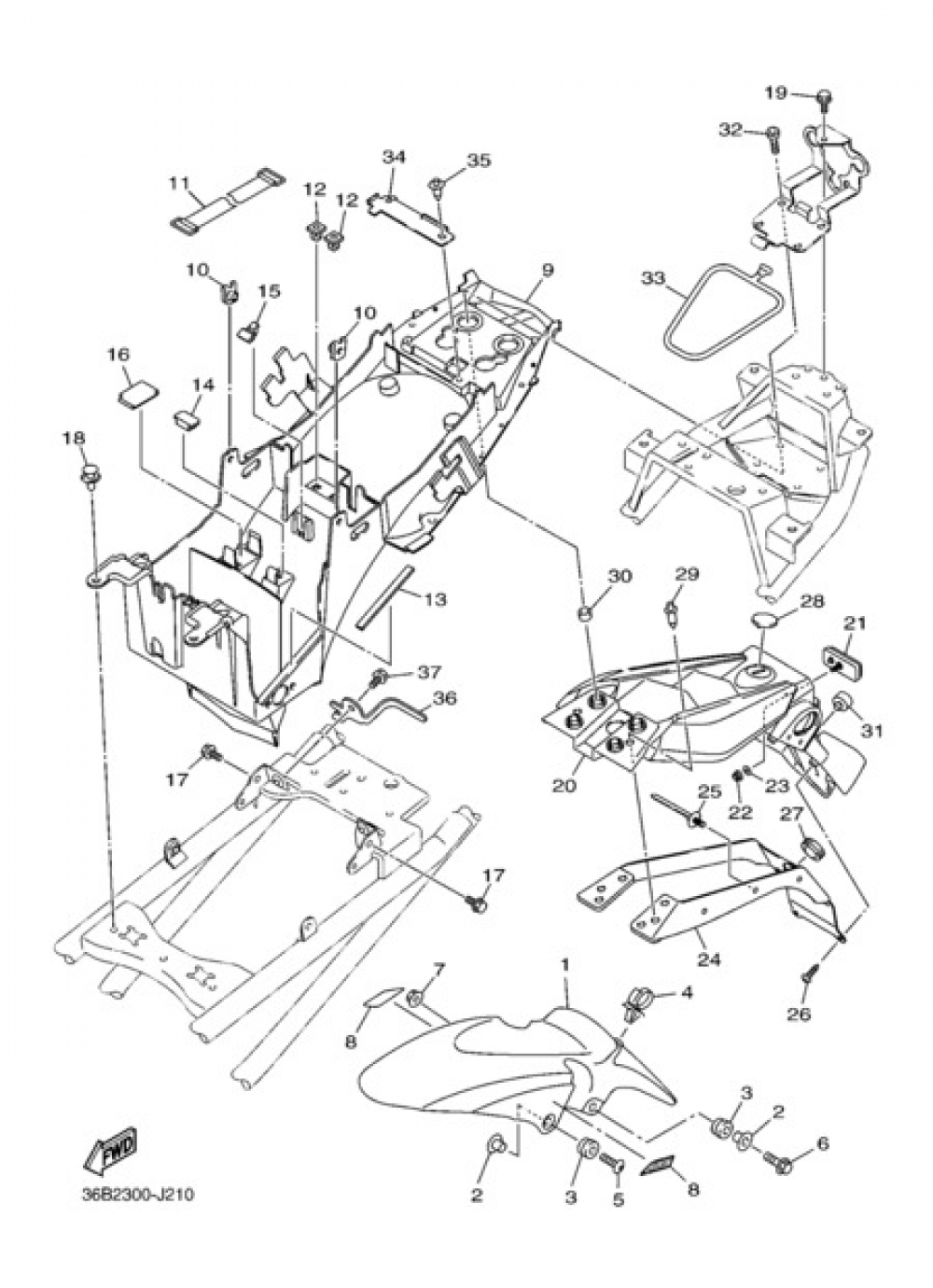

Add model to garageFENDER Yamaha XJ6 Diversion ABS 2010
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FENDER, FRONT
5VX21511A0P3
|
191,20 € | 1 | Add |
| 1 |
FENDER, FRONT
5VX21511A0P4
|
191,20 € | 1 | Add |
| 1 |
FENDER, FRONT
5VX21511A0P7
|
191,20 € | 1 | Add |
| 2 |
COLLAR
903870615900
|
2,55 € | 1 | Add |
| 3 |
GROMMET(53Y)
904801207200
|
6,09 € | 1 | Add |
| 4 |
CLAMP
904641800200
|
6,15 € | 1 | Add |
| 5 |
BOLT, HEXAGON SOCKET HEAD(3GM)
901100620200
|
4,08 € | 1 | Add |
| 6 |
BOLT, FLANGE(4AS)
950240603000
|
0,93 € | 1 | Add |
| 7 |
NUT, FLANGE(7NB)
957800650000
|
1,82 € | 1 | Add |
| 8 |
EMBLEM
5VS215781000
|
18,08 € | 1 | Add |
| 9 |
FENDER, REAR
20S216110000
|
78,26 € | 1 | Add |
| 10 |
NUT, SPRING(4ES)
901830606900
|
2,12 € | 1 | Add |
| 11 |
BAND,BATTERY
7H3821310000
|
11,89 € | 1 | Add |
| 12 |
GROMMET
904800700300
|
1,54 € | 1 | Add |
| 13 |
DAMPER
5JW2174X0000
|
1,54 € | 1 | Add |
| 14 |
SEAL, 2
20S216A20000
|
5,26 € | 1 | Add |
| 15 |
SEAL, 3
20S216A30000
|
5,26 € | 1 | Add |
| 16 |
SEAL, 4
20S216A40000
|
6,24 € | 1 | Add |
| 17 |
BOLT, FLANGE
958170601200
|
0,22 € | 1 | Add |
| 18 |
RIVET
902690701000
|
1,60 € | 1 | Add |
| 19 |
BOLT, FLANGE
958170601000
|
0,28 € | 1 | Add |
| 20 |
GUARDABARRO INFERIOR
20S216290100
|
72,14 € | 1 | Add |
| 21 |
REFLECTOR
3Y6851300200
|
23,31 € | 1 | Add |
| 22 |
NUT, U
956170510000
|
4,29 € | 1 | Add |
| 23 |
WASHER, PLATE
902010504300
|
0,74 € | 1 | Add |
| 24 |
BRACKET, REAR STAY
20S216880100
|
169,14 € | 1 | Add |
| 25 |
CLAMP
904642000500
|
1,82 € | 1 | Add |
