Yamaha XJ-SERIES XJ6 Diversion ABS 2010

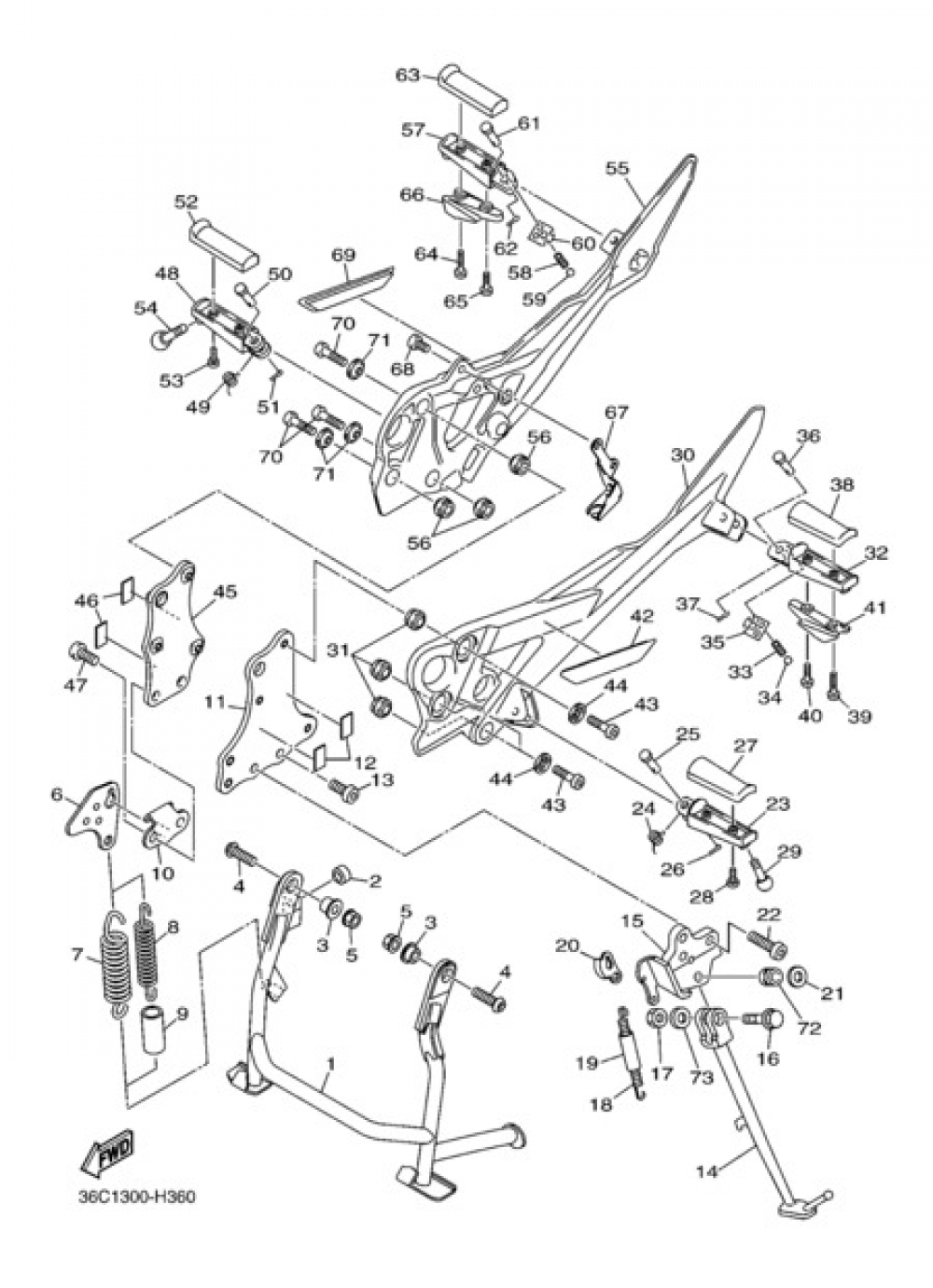

Add model to garageSTAND & FOOTREST Yamaha XJ6 Diversion ABS 2010
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 28 |
SCREW, PAN HEAD(3YL)
985800501400
|
1,77 € | 5 | Add |
| 29 |
BOLT
901090820400
|
3,43 € | 1 | Add |
| 30 |
BRACKET 2
20S274420000
|
212,91 € | 1 | Add |
| 31 |
DAMPER, FOOTREST 2
5VX274240000
|
12,08 € | 1 | Add |
| 32 |
FOOTREST, REAR 1
5RT274310000
|
60,62 € | 1 | Add |
| 33 |
SPRING, COMPRESSION (22N)
905011274300
|
5,25 € | 5 | Add |
| 34 |
BALL
935010401100
|
0,41 € | 5 | Add |
| 35 |
WASHER, SPECIAL
5VX274370000
|
8,31 € | 1 | Add |
| 36 |
PIN, CLEVIS (565)
917010804200
|
8,05 € | 1 | Add |
| 37 |
PIN, COTTER
914902502000
|
1,49 € | 5 | Add |
| 38 |
COVER, FOOTREST
4BP274130000
|
28,75 € | 1 | Add |
| 39 |
SCREW PAN HEAD W/W (4ST1E,4WC1
976070523000
|
0,69 € | 1 | Add |
| 40 |
SCREW, PAN HEAD WITH WASHER
976070522000
|
0,46 € | 1 | Add |
| 41 |
ARM 2
5LV2741E0100
|
89,14 € | 1 | Add |
| 42 |
COVER 1
20S274530000
|
28,33 € | 1 | Add |
| 43 |
BOLT (3XF1)
901100822000
|
3,96 € | 1 | Add |
| 44 |
WASHER(1UF)
902090829500
|
8,40 € | 1 | Add |
| 45 |
BRACKET,ADAPTER 2
20S274A40000
|
81,02 € | 1 | Add |
| 46 |
DAMPER, RUBBER 1
4RR214850000
|
2,57 € | 1 | Add |
| 47 |
BOLT,HEX. SOCKET BUTTON
901111003700
|
4,03 € | 1 | Add |
| 48 |
FOOTREST
4BH274610100
|
51,48 € | 1 | Add |
| 49 |
SPRING, TORSION (22N)
905082057200
|
4,92 € | 1 | Add |
| 50 |
PIN, CLEVIS (565)
917010804200
|
8,05 € | 1 | Add |
| 51 |
PIN, COTTER
914902502000
|
1,49 € | 5 | Add |
| 52 |
COVER, FOOTREST
4BP274130000
|
28,75 € | 1 | Add |
| 53 |
SCREW, PAN HEAD(3YL)
985800501400
|
1,77 € | 5 | Add |
| 54 |
BOLT
901090820400
|
3,43 € | 1 | Add |
