Yamaha CARRETERA WR250X 2014

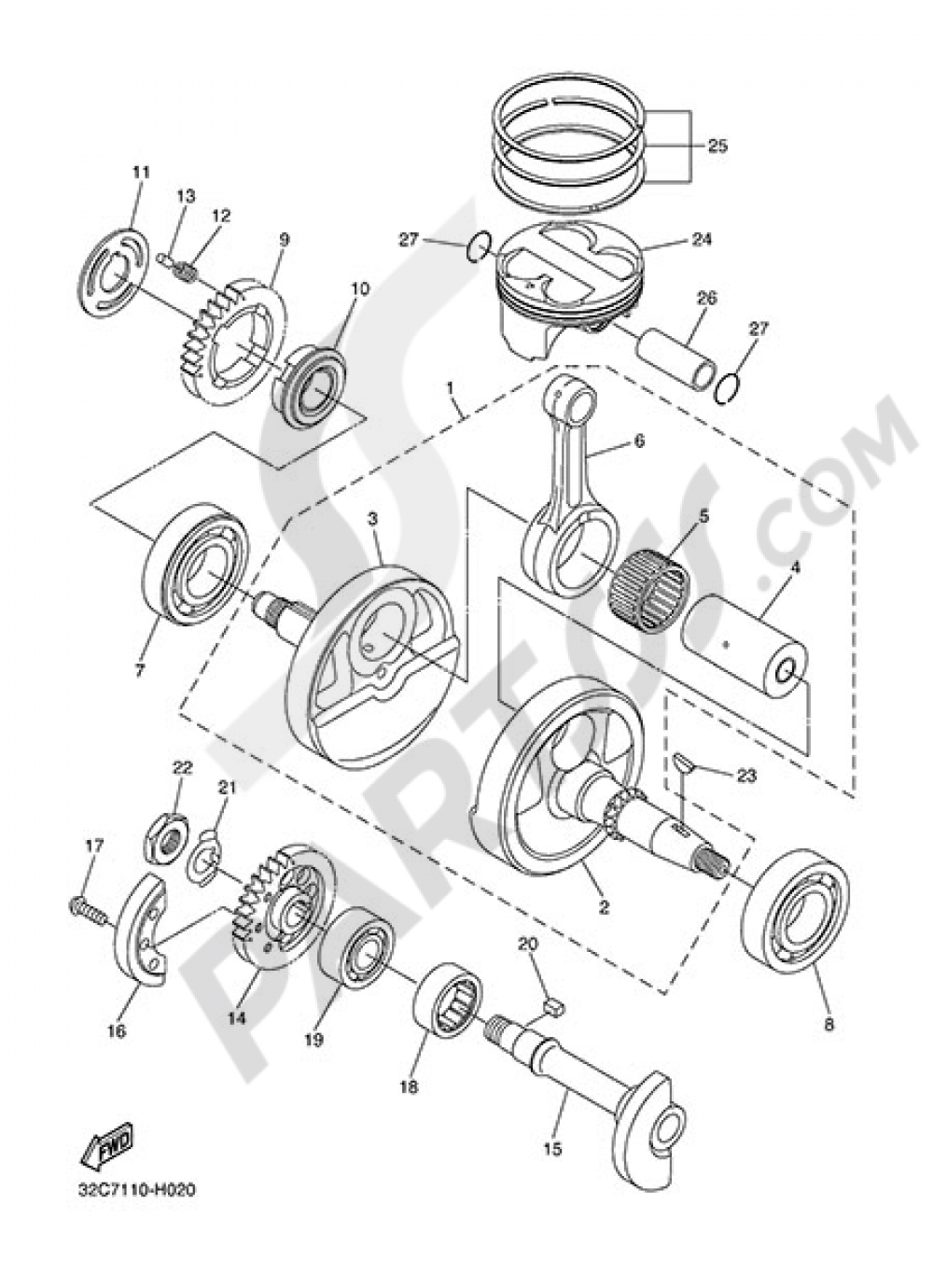

Add model to garageCRANKSHAFT & PISTON Yamaha WR250X 2014
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CRANKSHAFT ASSY
3D7114000100
|
596,39 € | 1 | Add |
| 2 |
CRANK 1
3D7114120000
|
276,13 € | 1 | Add |
| 3 |
CRANK 2
3D7114220000
|
276,13 € | 1 | Add |
| 4 |
PIN, CRANK 1
3D7116810100
|
78,12 € | 1 | Add |
| 5 |
BEARING
933106325700
|
59,76 € | 1 | Add |
| 6 |
ROD, CONNECTING
3D7116510000
|
90,65 € | 1 | Add |
| 7 |
BEARING
933062064800
|
110,66 € | 1 | Add |
| 8 |
BEARING
933062065700
|
132,45 € | 1 | Add |
| 9 |
GEAR, DRIVE
3D7115360000
|
117,53 € | 1 | Add |
| 10 |
BOSS, BUFFER
3D7114960000
|
92,75 € | 1 | Add |
| 11 |
PLATE, ABSORBER
3D7115330000
|
11,50 € | 1 | Add |
| 12 |
SPRING, COMPRESSION (5Y1)
905012272100
|
4,09 € | 1 | Add |
| 13 |
PIN, DOWEL
936051009000
|
3,32 € | 5 | Add |
| 14 |
GEAR, BALANCE WEIGHT
3D7115310000
|
149,53 € | 1 | Add |
| 15 |
SHAFT 1
3D7114550000
|
380,79 € | 1 | Add |
| 16 |
WEIGHT 1
3D7114540000
|
79,43 € | 1 | Add |
| 17 |
SCREW
901490606800
|
0,90 € | 1 | Add |
| 18 |
BEARING, CYLINDRICAL(3YL)
933116257400
|
79,39 € | 1 | Add |
| 19 |
BEARING
933052030100
|
133,55 € | 1 | Add |
| 20 |
KEY, STRAIGHT(34K)
902820506500
|
3,38 € | 5 | Add |
| 21 |
WASHER, LOCK
902151400300
|
6,48 € | 1 | Add |
| 22 |
NUT, HEXAGON
901701417100
|
4,98 € | 1 | Add |
| 23 |
KEY, WOODRUFF
902800300600
|
8,30 € | 1 | Add |
| 24 |
PISTON (STD)
3D7116310000
|
172,58 € | 1 | Add |
| 25 |
PIST N ANILLO CONJUNTO (STD)
5NL116031100
|
74,93 € | 1 | Add |
| 26 |
PIN, PISTON
4C8116330000
|
37,58 € | 1 | Add |
| 27 |
CIRCLIP
934501815700
|
0,45 € | 1 | Add |
