Yamaha CARRETERA WR250X 2014

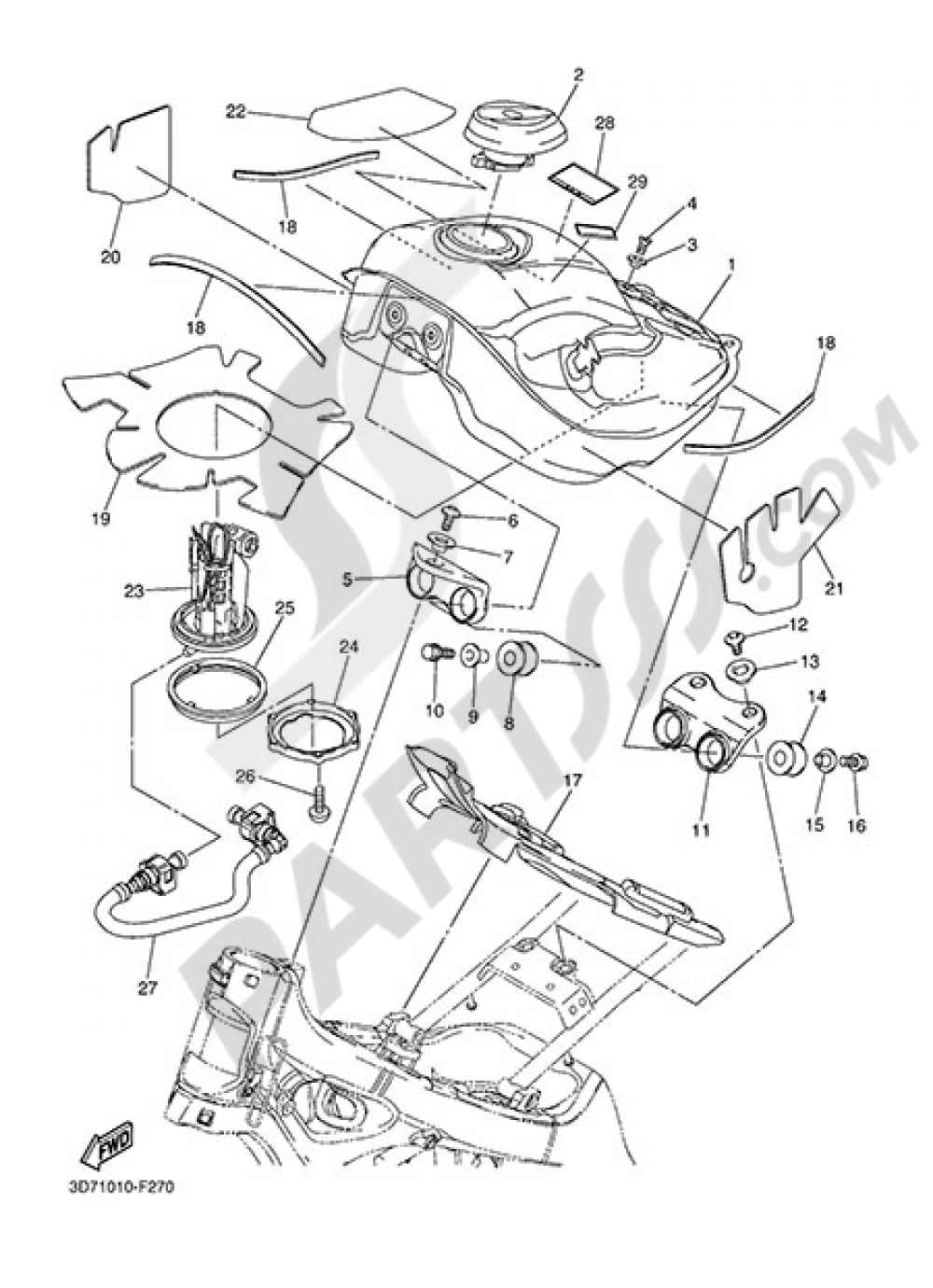

Add model to garageFUEL TANK Yamaha WR250X 2014
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FUEL TANK COMP.
3D72411020P0
|
336,04 € | 1 | Add |
| 2 |
CAP ASSY
3D7246022000
|
162,55 € | 1 | Add |
| 3 |
BRACKET, SEAT
4EW2412F0000
|
2,35 € | 1 | Add |
| 4 |
SCREW, FLAT
987070602000
|
0,74 € | 1 | Add |
| 5 |
BRACKET, FUEL TANK 1
3D7241910000
|
17,61 € | 1 | Add |
| 6 |
SCREW(4DN)
901490630200
|
5,97 € | 1 | Add |
| 7 |
COLLAR(50M)
90387087L000
|
4,51 € | 1 | Add |
| 8 |
GROMMET
3D7243390000
|
3,24 € | 1 | Add |
| 9 |
COLLAR
903870613600
|
2,40 € | 1 | Add |
| 10 |
BOLT, FLANGE
950220602500
|
0,66 € | 1 | Add |
| 11 |
BRACKET, FUEL TANK 2
3D7241920000
|
17,93 € | 1 | Add |
| 12 |
BOLT,HEX. SOCKET BUTTON
901110609500
|
2,48 € | 1 | Add |
| 13 |
COLLAR(50M)
90387087L000
|
4,51 € | 1 | Add |
| 14 |
GROMMET
3D7243390000
|
3,24 € | 1 | Add |
| 15 |
COLLAR
903870613600
|
2,40 € | 1 | Add |
| 16 |
BOLT, FLANGE
950220602500
|
0,66 € | 1 | Add |
| 17 |
DAMPER, LOCATING 1
3D7241810000
|
38,62 € | 1 | Add |
| 18 |
MOLD, FUEL TANK
3D7241880000
|
16,10 € | 1 | Add |
| 19 |
DAMPER, PLATE 4
3D72414N0000
|
101,44 € | 1 | Add |
| 20 |
DAMPER, PLATE 5
3D72414P0000
|
23,92 € | 1 | Add |
| 21 |
DAMPER, PLATE 6
3D72414R0100
|
42,74 € | 1 | Add |
| 22 |
SEAL
3D7212680000
|
14,03 € | 1 | Add |
| 23 |
BOMBA DE COMBUSTIBLE COMPLETA
3D7139071400
|
622,04 € | 1 | Add |
| 24 |
BRACKET, FUEL PUMP
3D7244910000
|
56,41 € | 1 | Add |
| 25 |
O-RING
1S4244860000
|
22,20 € | 1 | Add |
| 26 |
BOLT, BUTTON HEAD
920120501600
|
0,62 € | 1 | Add |
| 27 |
ANILLO DE ESPACIADOR
3D7139710100
|
86,17 € | 1 | Add |
