Yamaha CARRETERA WR250X 2014

Add model to garage

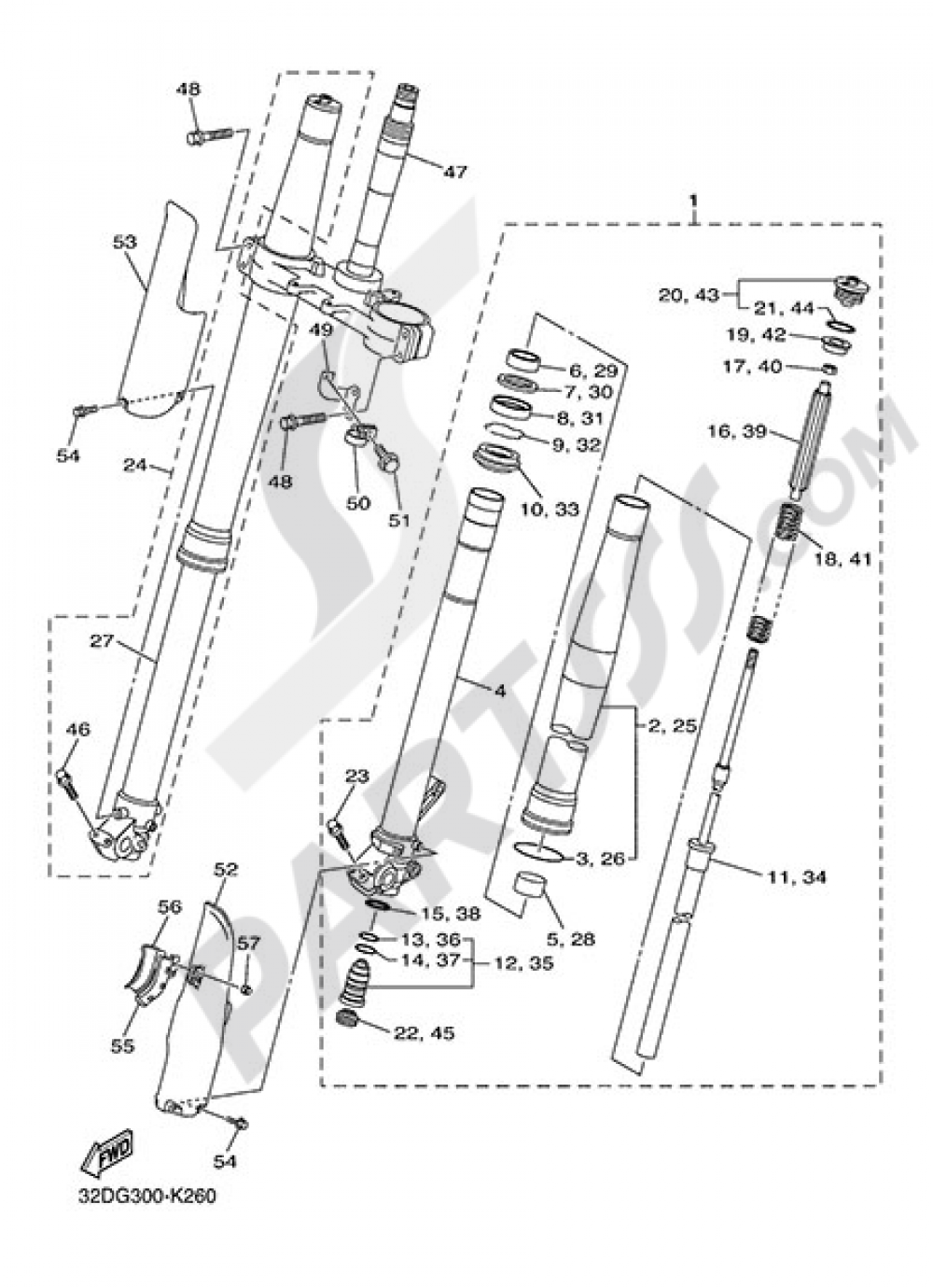

FRONT FORK Yamaha WR250X 2014

Pos. Ref./Description Price Qty.
1 FRONT FORK ASSY (L.H)
32D231028000
933,96 € 1 Add
2 OUTER TUBE COMP. (L.H)
3D7231063000
474,96 € 1 Add
3 RING, SNAP
3D7231530000
4,54 € 1 Add
4 INNER TUBE COMP.1
3D7231101000
458,52 € 1 Add
5 PISTON, FRONT FORK
5ET23171L000
18,63 € 1 Add
6 METAL, SLIDE 1
5ET23125L000
18,63 € 1 Add
7 WASHER, OIL SEAL
5UN23146L000
10,77 € 1 Add
8 OIL SEAL
5UN23145L000
19,93 € 1 Add
9 RING, SNAP
4SS23153L000
4,27 € 1 Add
10 SEAL, DUST
5HD23144L000
40,68 € 1 Add
11 CYLINDER COMP., FRONT FORK
32D231700000
881,41 € 1 Add
12 VALVE COMP.
32D2316A1000
475,42 € 1 Add
13 O-RING
4DA23147L000
6,68 € 1 Add
14 EMPAQUE
276231140100 276231140000
4,75 € 1 Add
15 GASKET
2HH23158L000
5,31 € 1 Add
16 GUIDE, SPRING
3D7231170000
46,87 € 1 Add
17 NUT
3XJ23357L000
0,71 € 1 Add
18 SPRING, FRONT FORK
32D231410000
94,40 € 1 Add
19 SEAT, SPRING LOWER
4SS23143L000
16,36 € 1 Add
20 BOLT, CAP
3D7231110000
351,09 € 1 Add
21 O-RING
3D7231470000
4,42 € 1 Add
22 PLUG
3JD2312GL000
7,01 € 1 Add
23 BOLT, FLANGE
950220804000
0,45 € 1 Add
24 FRONT FORK ASSY (R.H)
32D231038000
933,96 € 1 Add
25 OUTER TUBE COMP. (L.H)
3D7231063000
474,96 € 1 Add
26 RING, SNAP
3D7231530000
4,54 € 1 Add
27 INNER TUBE COMP.2
3D7231201000
458,52 € 1 Add
