Yamaha OFF-ROAD YZ125 2003

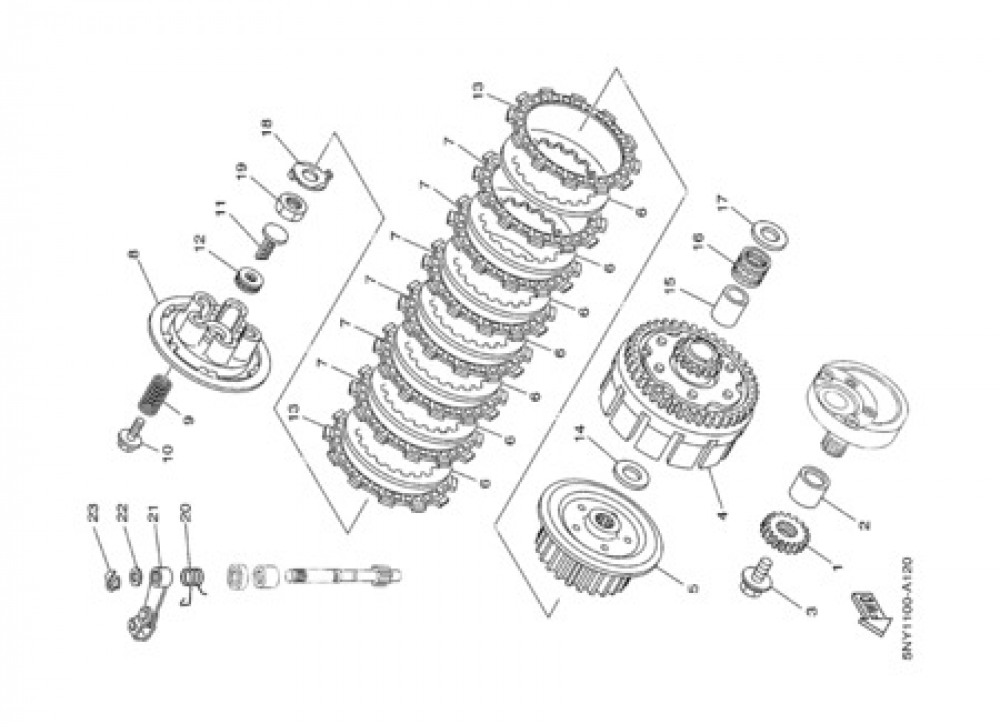

Add model to garageCLUTCH Yamaha YZ125 2003
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
GEAR, PRIMARY DRIVE
3XJ161110000
|
Obsolete | 1 | Not available |
| 2 |
COLLAR
903872000700
|
Obsolete | 1 | Not available |
| 3 |
BOLT, WASHER BASED(1TX)
901051044500
|
8,40 € | 1 | Add |
| 4 |
PRIMARY DRIVEN GEAR COMP.
5NY161500000
|
485,48 € | 1 | Add |
| 5 |
BOSS, CLUTCH
5NY163710000
|
121,31 € | 1 | Add |
| 6 |
PLACA DE EMBRAGUE
3XJ163241000
|
13,72 € | 1 | Add |
| 7 |
PLATE, FRICTION
5DH163210000
|
18,98 € | 1 | Add |
| 8 |
PLATE, PRESSURE 1
5HD163510000
|
78,17 € | 1 | Add |
| 9 |
SPRING (583 CLUTCH)
905012339100
|
6,80 € | 1 | Add |
| 10 |
SCREW, WITH WASHER (1W4)
901590601600
|
4,29 € | 1 | Add |
| 11 |
ROD, PUSH 1
3SB163561000
|
Obsolete | 1 | Not available |
| 12 |
BEARING, THRUST(3AY)
933402100800
|
41,93 € | 1 | Add |
| 13 |
PLATE, FRICTION
3XJ163210000
|
19,21 € | 1 | Add |
| 14 |
WASHER, PLATE(1HX)
90201204K800
|
10,60 € | 1 | Add |
| 15 |
SPACER 1
3XJ161810000
|
44,59 € | 1 | Add |
| 16 |
BEARING, CYLINDRICAL(51Y)
93310225N000
|
62,31 € | 1 | Add |
| 17 |
WASHER, PLATE(1HX)
90201204K800
|
10,60 € | 1 | Add |
| 18 |
WASHER, LOCK(4KB)
902151628900
|
9,73 € | 1 | Add |
| 19 |
NUT, HEXAGON (30X)
901701632600
|
9,34 € | 1 | Add |
| 20 |
SPRING, TORSION(4XM)
90508141B400
|
7,94 € | 1 | Add |
| 21 |
PUSH LEVER ASSY
3JD163400000
|
Obsolete | 1 | Not available |
| 22 |
WASHER PLATE (3L6)
902010875900
|
1,94 € | 1 | Add |
| 23 |
CIRCLIP
934300805300
|
0,62 € | 1 | Add |
