Yamaha OFF-ROAD YZ125 2003

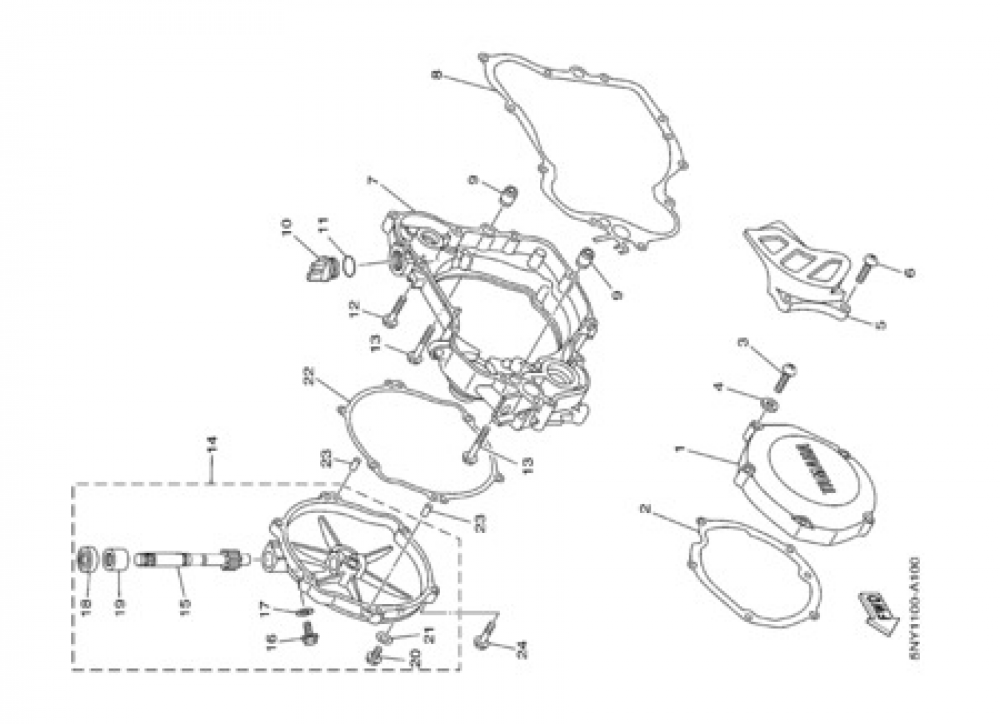

Add model to garageCRANKCASE COVER 1 Yamaha YZ125 2003
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
COVER, CRANKCASE 1
4JY154110000
|
Obsolete | 1 | Not available |
| 2 |
GASKET, CRANKCASE COVER 1
4JY154511000
|
25,27 € | 1 | Add |
| 3 |
SCREW, PAN
985170603000
|
1,33 € | 1 | Add |
| 4 |
WASHER(6TA)
929070660000
|
0,62 € | 1 | Add |
| 5 |
COVER, CRANKCASE 2
4EX154210000
|
Obsolete | 1 | Not available |
| 6 |
SCREW, PAN HEAD(3TJ)
985070601600
|
0,62 € | 1 | Add |
| 7 |
COVER, CRANKCASE 3
4JY154311400
|
181,71 € | 1 | Add |
| 8 |
GASKET, CRANKCASE COVER 3
4JY154620000
|
25,27 € | 1 | Add |
| 9 |
P1N, DOWEL
995301011400
|
1,60 € | 5 | Add |
| 10 |
PLUG, OIL
3Y1153631000
|
13,96 € | 1 | Add |
| 11 |
O-RING (646)
932101912300
|
5,08 € | 5 | Add |
| 12 |
BOLT, SMALL FLANGE
950270603000
|
0,93 € | 1 | Add |
| 13 |
BOLT, SMALL FLANGE
950270604000
|
1,66 € | 1 | Add |
| 14 |
COVER ASSY
5NY154900000
|
Obsolete | 1 | Not available |
| 15 |
AXLE, PUSH LEVER
4EX163821000
|
48,51 € | 1 | Add |
| 16 |
BOLT (583 TACHOMETER)
901090641800
|
1,66 € | 1 | Add |
| 17 |
GASKET 256113960000
904300601400
|
2,33 € | 1 | Add |
| 18 |
OIL SEAL (4G0)
931021222400
|
14,78 € | 1 | Add |
| 19 |
BRG,CYL-CAL ROLLER 6G TM
933151120600
|
26,53 € | 1 | Add |
| 20 |
BOLT, FLANGE(4MY)
950270601000
|
0,22 € | 1 | Add |
| 21 |
GASKET 256113960000
904300601400
|
2,33 € | 1 | Add |
| 22 |
GASKET, CARBURETOR COVER 2
4JY154630100
|
24,75 € | 1 | Add |
| 23 |
PIN,DOWEL (603)
936041001100
|
2,57 € | 5 | Add |
| 24 |
BOLT, WASHER BASED(4KG)
90105060A000
|
1,70 € | 1 | Add |
