Yamaha OFF-ROAD YZ125 2003

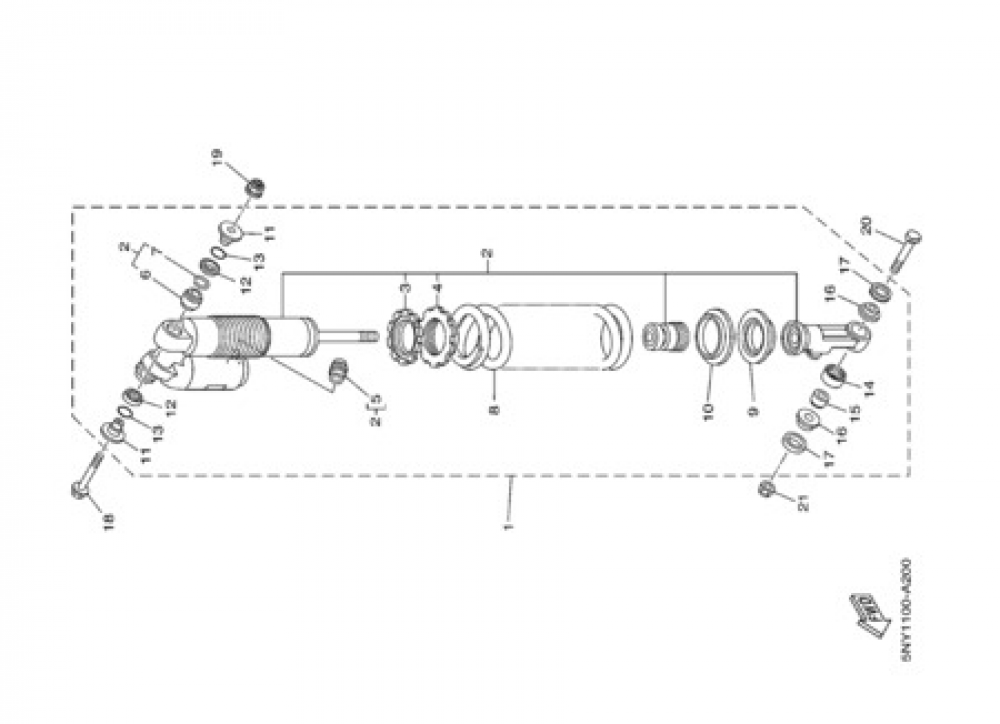

Add model to garageREAR SUSPENSION Yamaha YZ125 2003
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
SHOCK ABSORBER ASSY, REAR
5UN222101000
|
Obsolete | 1 | Not available |
| 2 |
DAMPER SUB ASSY
5UN222011000
|
Obsolete | 1 | Not available |
| 3 |
GUIDE, SPRING 3
3SP222340000
|
48,36 € | 1 | Add |
| 4 |
SEAT, SPRING UPPER
3SP222130000
|
47,56 € | 1 | Add |
| 5 |
CAP, AIR VALVE
50923184L000
|
9,48 € | 1 | Add |
| 6 |
BUSH, SHOCK ABSORBER LOWER
4JX222260000
|
59,84 € | 1 | Add |
| 7 |
CIRCLIP
5DH231830000
|
2,48 € | 1 | Add |
| 8 |
SPRING
5UN22212B000
|
345,07 € | 1 | Add |
| 8 |
SPRING
5UN222121000
|
345,07 € | 1 | Add |
| 9 |
GUIDE, SPRING 1
5DH222140000
|
Obsolete | 1 | Not available |
| 10 |
GUIDE, SPRING 2
5MV222240000
|
14,19 € | 1 | Add |
| 11 |
COLLAR, DISTANCE
5DH222530000
|
Obsolete | 1 | Not available |
| 12 |
SEAL, DUST
3JE224750000
|
3,06 € | 1 | Add |
| 13 |
SEAL, RING
4EW224740000
|
3,62 € | 1 | Add |
| 14 |
BEARING
5MV221760000
|
42,17 € | 1 | Add |
| 15 |
BUSH
5MV221840000
|
27,41 € | 1 | Add |
| 16 |
COLLAR, DISTANCE
5MV222530000
|
14,59 € | 1 | Add |
| 17 |
SEAL, DUST
5NY224750000
|
12,73 € | 1 | Add |
| 18 |
B0LT,FLANGE (1KT)
901051032300
|
6,86 € | 1 | Add |
