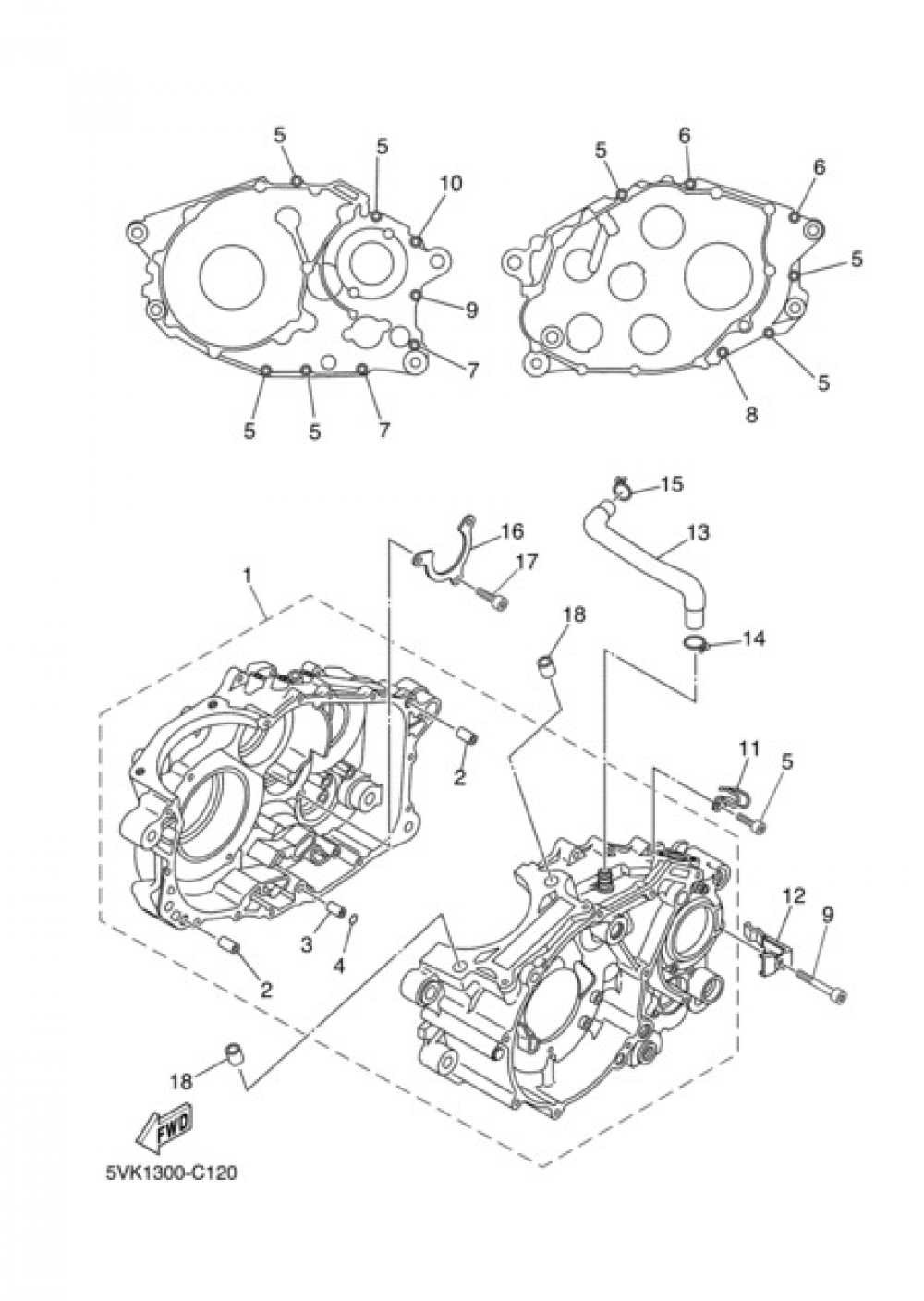

Yamaha CARRETERA XT660X 2004
Add model to garageCARTER Yamaha XT660X 2004
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CRANKCASE ASSY
5VKE51000000
|
1.889,32 € | 1 | Add |
| 2 |
PIN, DOWEL
995301201600
|
3,38 € | 10 | Add |
| 3 |
PIN, DOWEL
9180816X0000
|
2,68 € | 10 | Add |
| 4 |
O-RING
9321007X0100
|
1,46 € | 5 | Add |
| 5 |
BOLT, HEXAGON SOCKET HEAD(1VJ)
901100613800
|
3,49 € | 1 | Add |
| 6 |
BOLT, HEXAGON SOCKET HEAD(M01)
9011006X8100
|
Obsolete | 1 | Not available |
| 7 |
BOLT,SOCKET
913170605500
|
2,88 € | 1 | Add |
| 8 |
BOLT,SOCKET
913170606000
|
2,88 € | 1 | Add |
| 9 |
BOLT,SOCKET
913170608000
|
4,51 € | 1 | Add |
| 10 |
BOLT, SOCKET
913170609000
|
3,77 € | 1 | Add |
| 11 |
CLAMP
904620601200
|
2,22 € | 1 | Add |
| 12 |
CLAMP
904651201300
|
9,95 € | 1 | Add |
| 13 |
PIPE, BREATHER 1
5VK111660000
|
17,74 € | 1 | Add |
| 14 |
CLIP (371)
904671401500
|
2,57 € | 1 | Add |
| 15 |
CLIP (371)
904671401500
|
2,57 € | 1 | Add |
| 16 |
PLATE, BEARING COV
5VKE53830000
|
2,48 € | 1 | Add |
| 17 |
BOLT,SOCKET
913170601600
|
0,28 € | 1 | Add |
| 18 |
PIN, DOWEL
995301401600
|
4,51 € | 1 | Add |
