Yamaha CARRETERA XT660X 2004

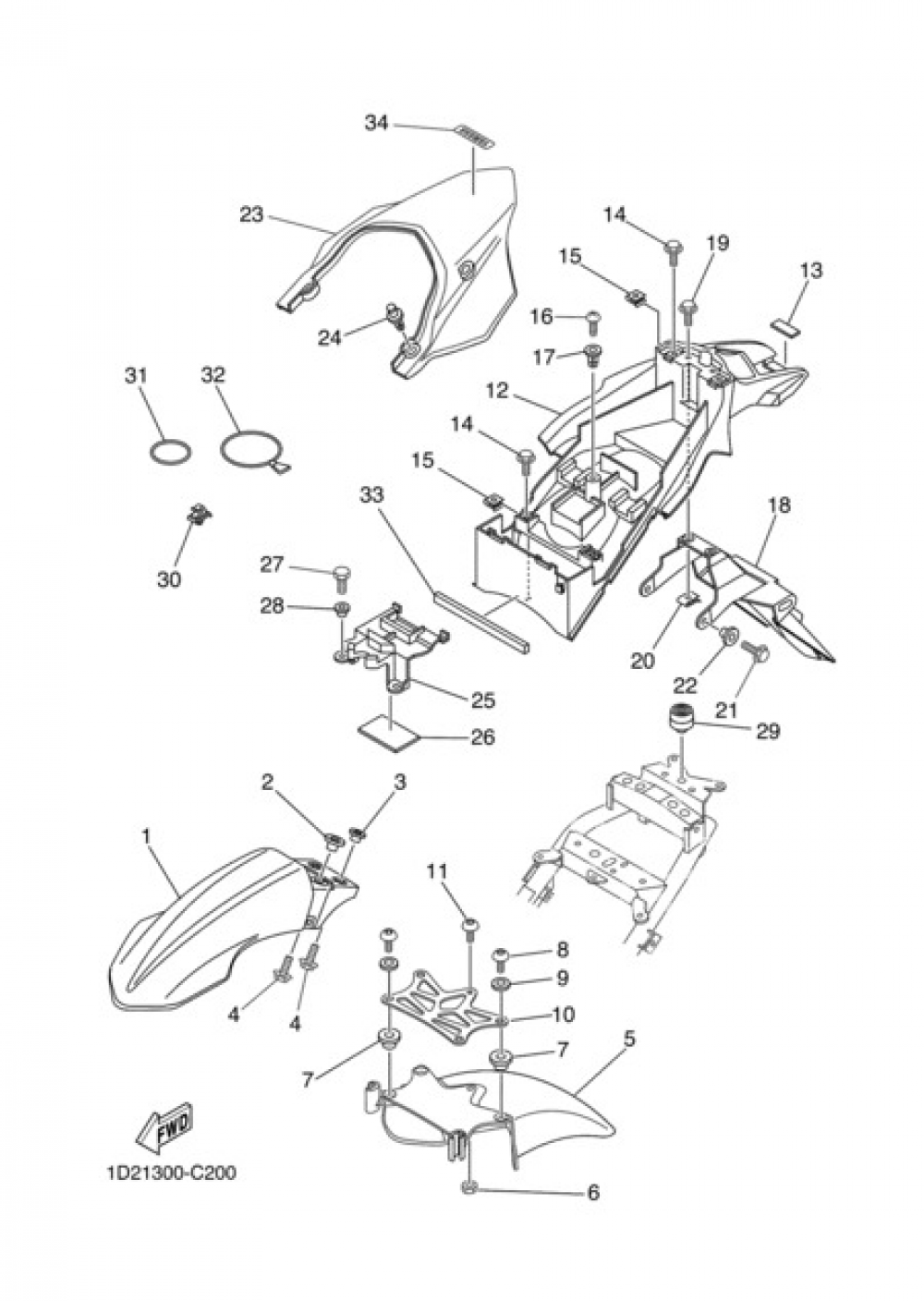

Add model to garageFENDER Yamaha XT660X 2004
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FENDER, FRONT
1D2F15110000
|
104,54 € | 1 | Add |
| 2 |
COLLAR(3SX)
90387065X700
|
10,36 € | 1 | Add |
| 3 |
COLLAR(50M)
90387087L000
|
4,51 € | 1 | Add |
| 4 |
BOLT, WITH WASHER (10V)
901190606300
|
2,57 € | 1 | Add |
| 5 |
FENDER, FRONT 2
1D2F15560000
|
60,41 € | 1 | Add |
| 6 |
NUT
9017906X0200
|
Obsolete | 12 | Not available |
| 7 |
COLLAR
9038708X0500
|
16,87 € | 1 | Add |
| 8 |
BOLT
9011108X0500
|
12,08 € | 1 | Add |
| 9 |
WASHER, PLAIN
9020108X0300
|
Obsolete | 1 | Not available |
| 10 |
STAY, FENDER 2
1D2F15140000
|
28,61 € | 1 | Add |
| 11 |
BOLT
9011106X1500
|
12,36 € | 1 | Add |
| 12 |
FENDER REAR
5VKF16110100
|
76,95 € | 1 | Add |
| 13 |
DAMPER
5DM283710000
|
0,98 € | 1 | Add |
| 14 |
BOLT, FLANGE
958170601200
|
0,22 € | 1 | Add |
| 15 |
NUT, SPRING (26H)
901830602300
|
3,49 € | 1 | Add |
| 16 |
SCREW, TRUSS TAP.
977076002000
|
0,62 € | 1 | Add |
| 17 |
PLUG(4BP)
903380822600
|
1,66 € | 5 | Add |
| 18 |
BRACKET LICENSE
5VKF16850000
|
46,63 € | 1 | Add |
| 19 |
BOLT, WITH WASHER(81H)
901190611800
|
0,93 € | 1 | Add |
| 20 |
NUT, SPRING (26H)
901830602300
|
3,49 € | 1 | Add |
| 21 |
BOLT, FLANGE
958170601400
|
0,93 € | 1 | Add |
| 22 |
COLLAR (8G8)
903870664800
|
4,42 € | 1 | Add |
| 23 |
COVER, REAR FENDER
5VKF16512000
|
Obsolete | 1 | Not available |
| 23 |
COVER REAR FENDER
5VKF16510000
|
107,51 € | 1 | Add |
| 24 |
RIVET
902690806900
|
1,26 € | 5 | Add |
| 25 |
BOX
5VKF160E0000
|
16,19 € | 1 | Add |
| 26 |
DAMPER 2
5VK216390000
|
1,33 € | 1 | Add |
