Yamaha CARRETERA XT660X 2004

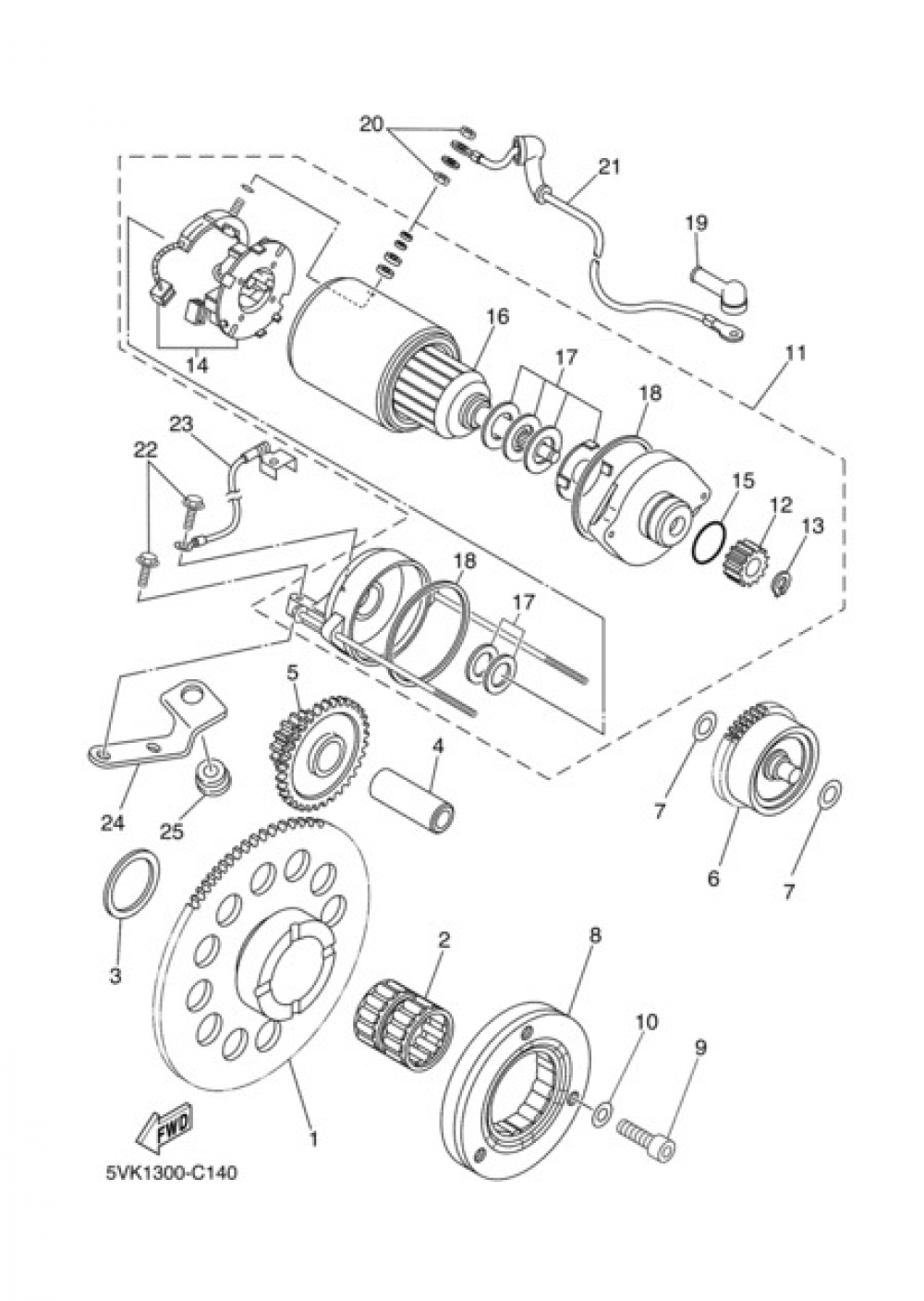

Add model to garageSTARTER CLUTCH Yamaha XT660X 2004
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
GEAR 3
3YF155150000
|
249,64 € | 1 | Add |
| 2 |
BEARING, CYLINDRICAL(3TB)
93310530C700
|
65,83 € | 1 | Add |
| 3 |
WASHER, PLATE
9020130X0100
|
5,77 € | 1 | Add |
| 4 |
SHAFT 2
5VKE55220000
|
12,57 € | 1 | Add |
| 5 |
GEAR, IDLER 2
5VK155170000
|
112,91 € | 1 | Add |
| 6 |
ARANDELA
5VKE55600100
|
547,55 € | 1 | Add |
| 7 |
WASHER PLATE (3L6)
902010875900
|
1,94 € | 1 | Add |
| 8 |
STARTER ONE-WAY ASSY
5VK155900000
|
201,58 € | 1 | Add |
| 9 |
BOLT, SOCKET
913170802500
|
1,08 € | 5 | Add |
| 10 |
WASHER, PLATE
9020108X1800
|
1,26 € | 10 | Add |
| 11 |
STARTING MOTOR UNIT
3SX818900000
|
489,00 € | 1 | Add |
| 12 |
GEAR, STARTING MOTOR
1VJ155110000
|
118,42 € | 1 | Add |
| 13 |
CIRCLIP (341)
934401102400
|
3,62 € | 1 | Add |
| 14 |
BRUSH SET
3AJ818010000
|
128,94 € | 1 | Add |
| 15 |
O-RING (437)
932102423500
|
7,33 € | 1 | Add |
| 16 |
ARMATURE ASSY
3AJ818500000
|
964,84 € | 1 | Add |
| 17 |
WASHER KIT
3AJ818090000
|
9,48 € | 1 | Add |
| 18 |
GASKET
35C818440000
|
31,36 € | 1 | Add |
| 19 |
CAP
5H0818710000
|
Obsolete | 1 | Not available |
| 20 |
NUT
4XV8182A0000
|
2,35 € | 1 | Add |
| 21 |
CORD, STARTER MOTOR
5VK818150000
|
86,79 € | 1 | Add |
| 22 |
BOLT, FLANGE
958170603500
|
1,49 € | 1 | Add |
| 23 |
CABLE CONDUCTOR NEGATIVO
5VKH21161000
|
Obsolete | 1 | Not available |
| 24 |
BRACKET
5VKE51990000
|
5,91 € | 1 | Add |
| 25 |
GROMMET
904801301400
|
2,35 € | 1 | Add |
