Yamaha CARRETERA XT660X 2004

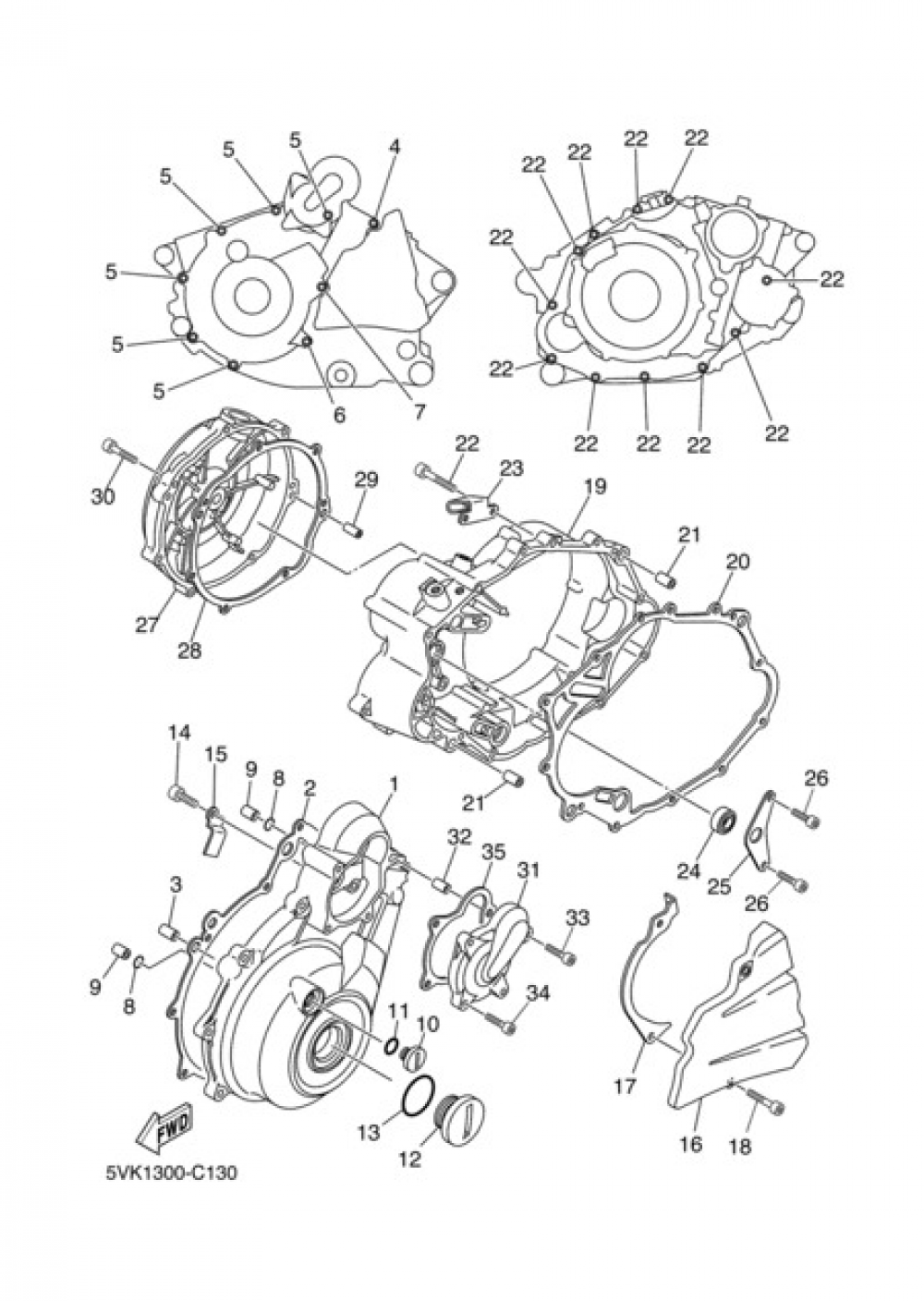

Add model to garageCRANKCASE COVER 1 Yamaha XT660X 2004
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CRANKCASE COVER AS
5VKWE5410000
|
271,42 € | 1 | Add |
| 2 |
GASKET, CRANKCASE COVER 1
5VKE54511000
|
21,34 € | 1 | Add |
| 3 |
PIN, DOWEL
995301201600
|
3,38 € | 10 | Add |
| 4 |
BOLT,SOCKET
913170603500
|
1,37 € | 1 | Add |
| 5 |
BOLT,SOCKET
913170602500
|
1,50 € | 5 | Add |
| 6 |
BOLT,SOCKET
913170605000
|
2,78 € | 1 | Add |
| 7 |
BOLT,SOCKET
913170605000
|
2,78 € | 1 | Add |
| 8 |
O-RING
9321013X0000
|
0,66 € | 5 | Add |
| 9 |
PIN, DOWEL
995301201600
|
3,38 € | 10 | Add |
| 10 |
PLUG, STRAIGHT SCR
9034014X0000
|
5,58 € | 1 | Add |
| 11 |
O-RING
9321014X0000
|
0,90 € | 5 | Add |
| 12 |
PLUG, STRAIGHT SCR
9034036X0000
|
Obsolete | 1 | Not available |
| 13 |
O-RING
9321035X0000
|
1,28 € | 10 | Add |
| 14 |
BOLT,SOCKET
913170601200
|
0,90 € | 1 | Add |
| 15 |
CLAMP
9046216X0000
|
0,66 € | 10 | Add |
| 16 |
COVER CRANKCASE 2
5VKE54210000
|
44,87 € | 1 | Add |
| 17 |
GUIDE CHAIN
5VKE74660000
|
19,02 € | 1 | Add |
| 18 |
BOLT,SOCKET
913170602500
|
1,50 € | 5 | Add |
| 19 |
COVER, CRANKCASE 3
5VKE54310000
|
335,64 € | 1 | Add |
| 20 |
GASKET, CRANKCASE COVER 3
5VKE54621000
|
21,34 € | 1 | Add |
| 21 |
PIN, DOWEL
995301201600
|
3,38 € | 10 | Add |
| 22 |
BOLT, HEXAGON SOCKET HEAD(1VJ)
901100613800
|
3,38 € | 1 | Add |
| 23 |
HOLDER, CLUTCH CAB
5VKE54410100
|
5,26 € | 5 | Add |
| 24 |
OIL SEAL(4GY)
931011416400
|
17,25 € | 1 | Add |
| 25 |
HOLDER
5VKE51180000
|
6,09 € | 1 | Add |
| 26 |
BOLT,SOCKET
913170601200
|
0,90 € | 1 | Add |
| 27 |
COVER, OIL PUMP
5VKE54163000
|
154,85 € | 1 | Add |
