Yamaha CARRETERA XT660X 2004

Add model to garage

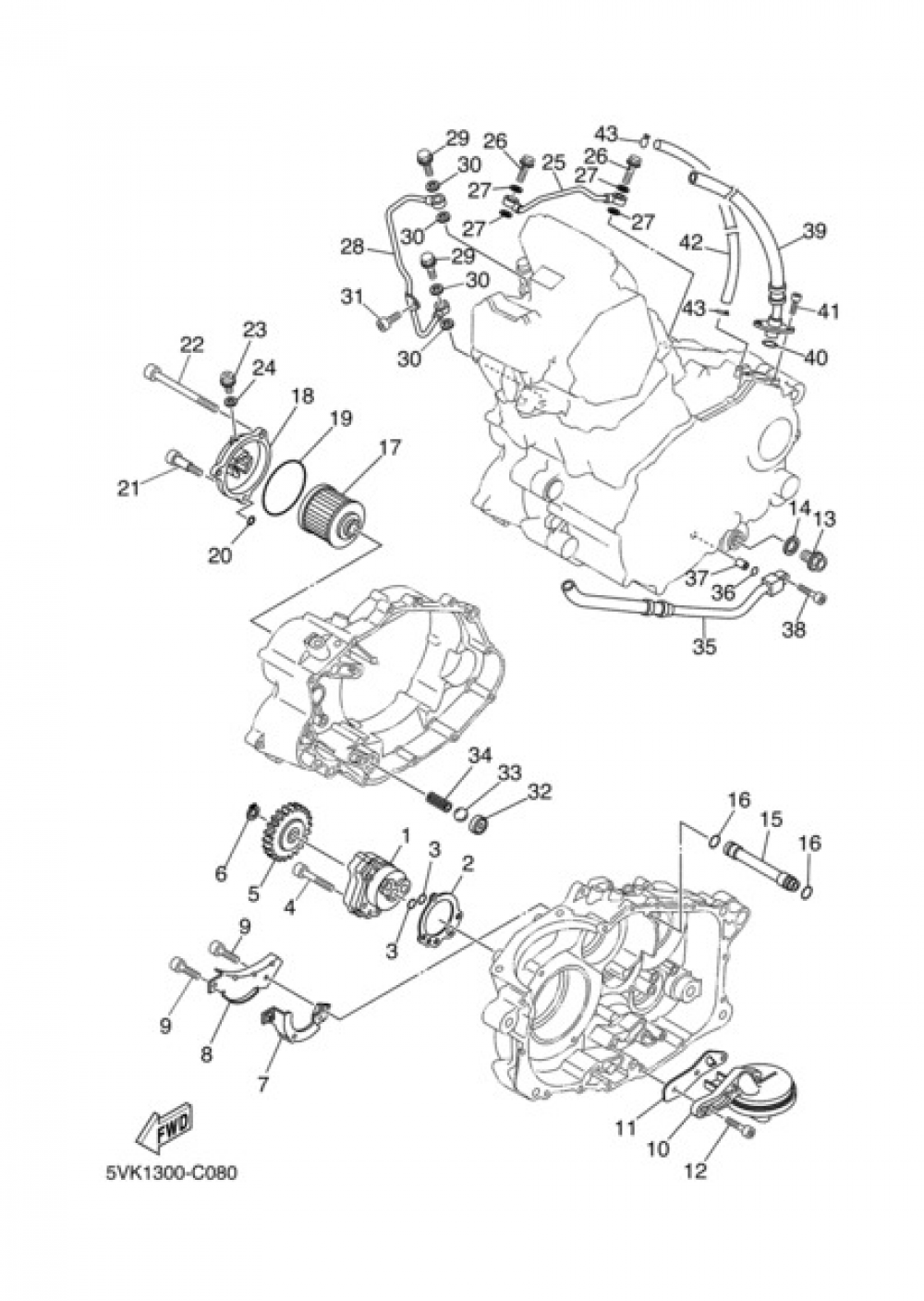

OIL PUMP Yamaha XT660X 2004

Pos. Ref./Description Price Qty.
1 OIL PUMP ASSY
5LP133000000
192,94 € 1 Add
2 GASKET, PUMP COVER
5LP133290000
1,44 € 1 Add
3 O-RING
9321013X0000
0,66 € 5 Add
4 BOLT, BUTTON
920170603500
2,27 € 1 Add
5 GEAR, PUMP DRIVEN
3AJ133250000
29,53 € 1 Add
6 CIRCLIP(24H)
990091140000
2,39 € 1 Add
7 COVER, PUMP 2
5VK133560000
14,48 € 1 Add
8 COVER, PUMP GEAR
5VK133270000
9,44 € 1 Add
9 BOLT, SOCKET
913170500800
1,70 € 1 Add
10 STRAINER COMP.
5VKWE3430000
82,75 € 1 Add
11 SEAL, OIL STRAINER
5VKE34151000 5VKE34150000
1,28 € 5 Add
12 BOLT,SOCKET
913170602000
0,39 € 1 Add
13 PLUG, STRAIGHT SCREW(3FA)
903401413200
4,09 € 1 Add
14 GASKET
214111980100
3,25 € 1 Add
15 PIPE, DELIVERY 3
5VK131810000
44,06 € 1 Add
16 O-RING (P95)
932101107300
4,87 € 1 Add
17 ELEMENT ASSY, OIL CLEANER
4X7134409000 4X7134400100
14,13 € 1 Add
18 COVER, OIL ELEMENT
2WK134470000
42,18 € 1 Add
19 O-RING (583 OIL CLEANER)
932106429700
5,37 € 1 Add
20 O-RING
9321007X0100
1,44 € 5 Add
21 BOLT (583 OIL DRAIN)
901090641900
3,32 € 1 Add
22 BOLT,SOCKET
913170609500
3,65 € 1 Add
23 SCREW (583)
901490511000
2,15 € 1 Add
24 GASKET (583)
904300512600
1,94 € 1 Add
25 PIPE, DELIVERY 1
5VK131611000 5VK131610000
49,85 € 1 Add
26 BOLT, UNION(3AJ)
904010813300
4,03 € 1 Add
27 GASKET(3AJ)
904300820400
3,19 € 5 Add
