Yamaha CARRETERA XT660X 2004

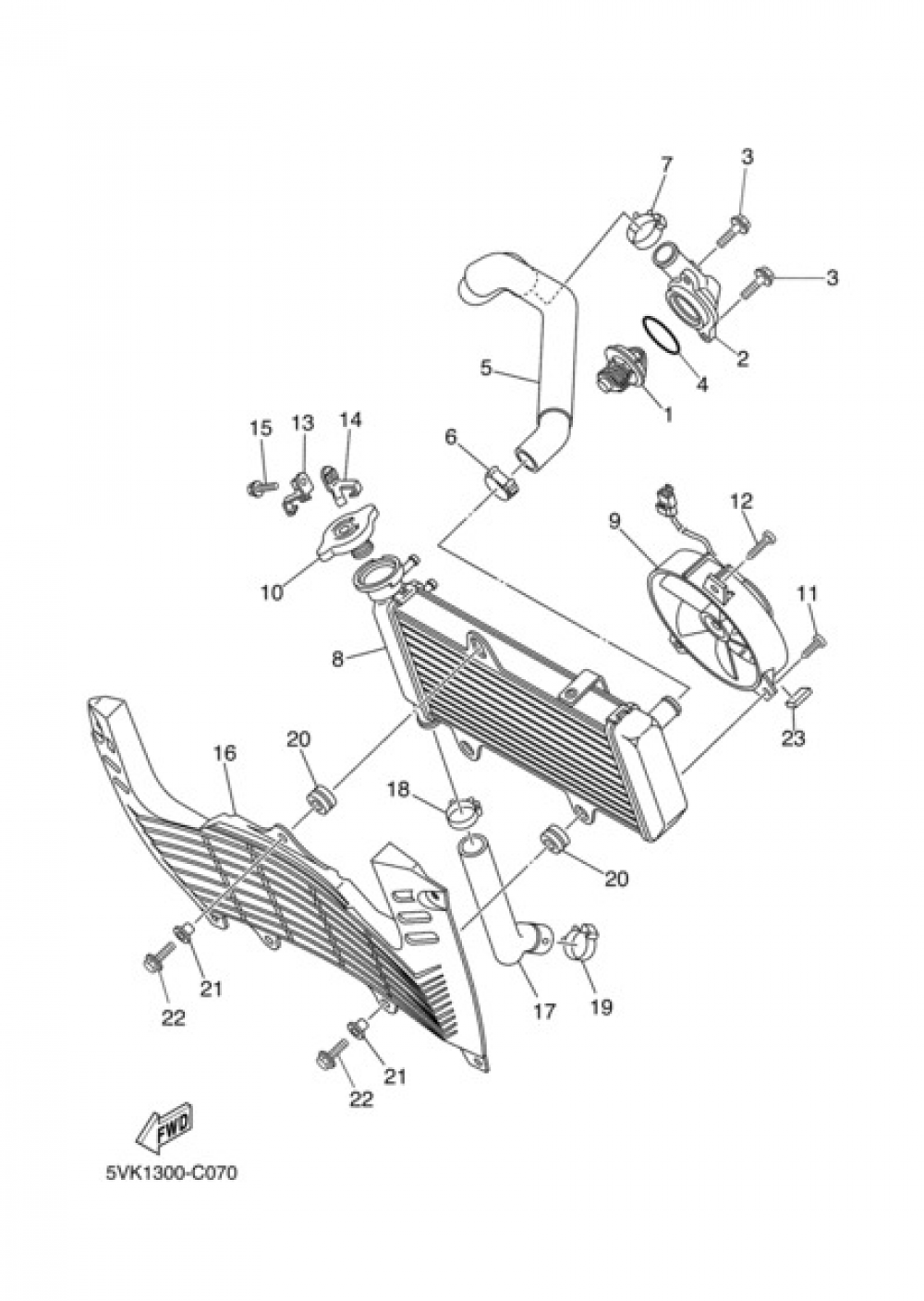

Add model to garageRADIATOR AND HOSE Yamaha XT660X 2004
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
TERMOSTATO CONJUNTO
5VK124100100
|
70,42 € | 1 | Add |
| 2 |
COVER, THERMOSTAT
5VKE24131000
|
49,37 € | 1 | Add |
| 3 |
BOLT, FLANGE(6U1)
950270602000
|
0,27 € | 1 | Add |
| 4 |
O-RING (132)
932104104200
|
4,21 € | 1 | Add |
| 5 |
HOSE 3
5VK125780000
|
59,37 € | 1 | Add |
| 6 |
HOSE CLAMP ASSY
9045031X0000
|
Obsolete | 1 | Not available |
| 7 |
CLIP
904672980000
|
Obsolete | 5 | Not available |
| 8 |
RADIADOR COMPLETO
5VKE24612900
|
503,87 € | 1 | Add |
| 9 |
BLOWER ASSY
5VKE24050000
|
505,28 € | 1 | Add |
| 10 |
TAPON, DEL RADIADOR
5VKE24620900
|
41,85 € | 1 | Add |
| 11 |
SCREW TAPPING
9016905X0100
|
5,26 € | 10 | Add |
| 12 |
SCREW TAPPING
901690580100
|
1,28 € | 5 | Add |
| 13 |
STOPPER
5VKE24370000
|
19,02 € | 1 | Add |
| 14 |
STOPPER
5VKE24371000
|
19,02 € | 1 | Add |
| 15 |
BOLT, FLANGE
958170601000
|
0,27 € | 1 | Add |
| 16 |
PROTECTOR
5VKE24980000
|
50,69 € | 1 | Add |
| 17 |
HOSE 4
5VK125790000
|
26,60 € | 1 | Add |
| 18 |
HOSE CLAMP ASSY
9045031X0000
|
Obsolete | 1 | Not available |
| 19 |
CLIP
904672980000
|
Obsolete | 5 | Not available |
| 20 |
GROMMET (4L0)
904801827600
|
1,50 € | 1 | Add |
| 21 |
COLLAR
903870604200
|
6,48 € | 1 | Add |
| 22 |
BOLT,W/WASHER
975070652500
|
0,27 € | 5 | Add |
| 23 |
DAMPER 2
1HX282270000
|
6,96 € | 1 | Add |
