Yamaha CARRETERA XT660X 2004

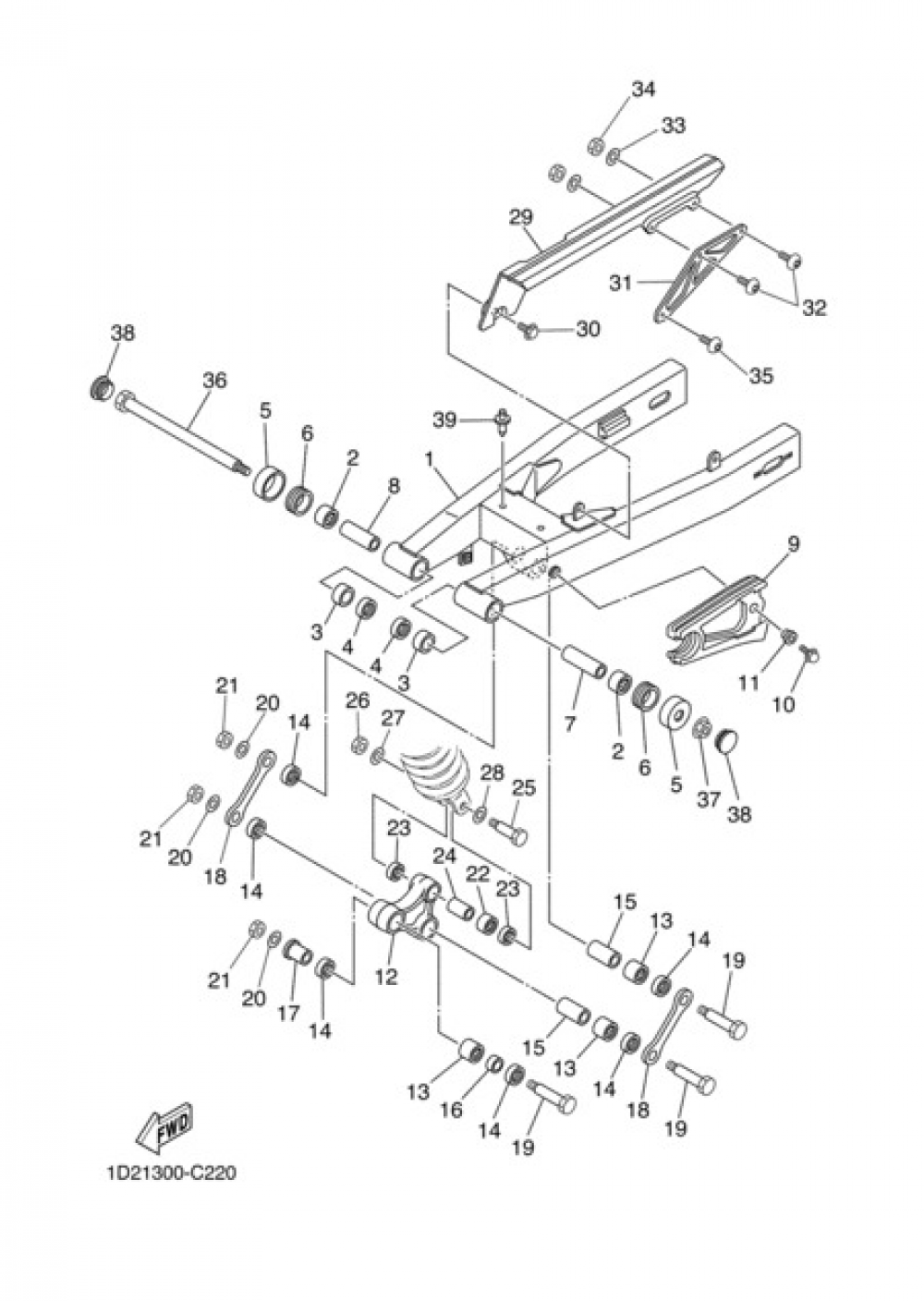

Add model to garageREAR ARM Yamaha XT660X 2004
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
REAR ARM COMP MAT BLACK 2
5VKF21101000
|
800,30 € | 1 | Add |
| 2 |
BEARING, CYLINDRICAL(4PT)
933152225100
|
47,05 € | 1 | Add |
| 3 |
BUSH, SOLID (23X)
903802211100
|
20,39 € | 1 | Add |
| 4 |
OIL SEAL (23X)
931062201900
|
6,75 € | 1 | Add |
| 5 |
COVER
30X2219X0000
|
10,06 € | 1 | Add |
| 6 |
OIL SEAL (35X41.5X8-483)
931083500400
|
8,30 € | 1 | Add |
| 7 |
BUSH 2
5VK221240000
|
26,10 € | 1 | Add |
| 8 |
BUSH 1
5VK221230000
|
26,10 € | 1 | Add |
| 9 |
SEAL GUARD
5VKF21510000
|
62,95 € | 1 | Add |
| 10 |
BOLT, FLANGE
958170602000
|
1,22 € | 1 | Add |
| 11 |
COLLAR
903870606600
|
1,70 € | 1 | Add |
| 12 |
ARM RELAY
5VKF217A0000
|
168,99 € | 1 | Add |
| 13 |
BEARING, CYLINDRICAL(4RR)
933153205300
|
49,49 € | 1 | Add |
| 14 |
OIL SEAL
931092007600
|
7,67 € | 1 | Add |
| 15 |
COLLAR(3XP)
90387167R500
|
33,49 € | 1 | Add |
| 16 |
COLLAR
903871601100
|
22,84 € | 1 | Add |
| 17 |
COLLAR
903871601200
|
42,00 € | 1 | Add |
| 18 |
ROD, CONNECTING 1
1D2F217F0000
|
18,12 € | 1 | Add |
| 19 |
BOLT
5VK221250100
|
14,27 € | 1 | Add |
| 20 |
WASHER, PLATE (5X6)
90201160F600
|
7,52 € | 1 | Add |
| 21 |
NUT, SELF-LOCKING
901851400200
|
10,66 € | 1 | Add |
| 22 |
BEARING
933153175900
|
28,57 € | 1 | Add |
| 23 |
OIL SEAL
931091707100
|
4,47 € | 1 | Add |
| 24 |
COLLAR(3TJ)
90387127W000
|
14,42 € | 1 | Add |
| 25 |
BOLT(1WG)
901011065900
|
7,19 € | 1 | Add |
| 26 |
NUT, U
956141010000
|
6,96 € | 1 | Add |
| 27 |
WASHER, PLATE(47X)
90201101J100
|
3,25 € | 1 | Add |
